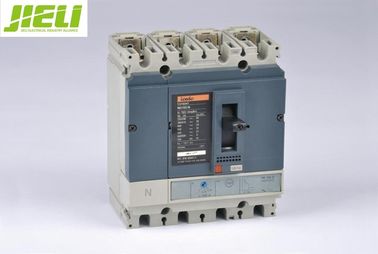

Electrical MCCB Moulded Case Circuit Breaker 3 pole AC 220 / 240V For overload protection
Quick Detail:
|
Place of Origin:
|
ZHE,Zhejiang China (Mainland)
|
Brand Name:
|
JIELI
|
Model Number:
|
JL-NS
|
|
Type:
|
Moulded Case
|
Poles Number:
|
3
|
rated current in(A):
|
250-400A
|
|
rated operating voltage ue(v)(50/60Hz):
|
690v
|
Rated insulation
voltage ui(v):
|
1000v
|
Rated impulse withstand
voltage Uimp(kv):
|
8kv
|
|
Frequency:
|
50Hz, 60Hz
|
cover:
|
fire proof
|
|
|
Description:
JL-NS moulded case circuit breaker is one of the most advanced type breakers in the world,which adopts international advanced design and manufacture technology.
JL-NS moulded case circuit breaker is suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A.
JL-NS moulded case circuit breaker takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage
Specification:
|
Specification
|
NS100
|
NS160
|
NS250
|
NS00
|
NS630
|
|
Frame Current(A)
|
100
|
160
|
250
|
400
|
630
|
|
Number of Poles
|
3,4
|
3,4
|
3,4
|
3,4
|
3,4
|
|
Ultimate Breaking Capacity(Icu KA)
|
F
|
N
|
H
|
F
|
N
|
H
|
F
|
N
|
H
|
F
|
N
|
H
|
F
|
N
|
H
|
|
AC220/240V(KA)
|
85
|
90
|
100
|
85
|
90
|
100
|
85
|
90
|
100
|
40
|
85
|
100
|
40
|
85
|
100
|
|
AC380/415V(KA)
|
36
|
50
|
70
|
36
|
50
|
70
|
36
|
50
|
70
|
36
|
50
|
70
|
36
|
50
|
70
|
|
Rated Insulation Voltage
|
AC800
|
|
Rated Working Voltage
|
AC960
|
|
Rated Current ,Thermal Tripping, TMD
|
63,80,100
|
100,1245,150,160
|
200,220,250
|
300,400
|
630
|
|
Rated Current ,Electronic Tripping, TMD
|
400,100
|
400,100,160
|
100,160,250
|
250,400
|
250,400,630
|
|
Auxiliary, Alert, Fault Accessories
|
OF/SD/SDE/SDX
|
|
Shunt Under Voltage Coil
|
MX/MN
|
|
Mechanical Life
|
50000
|
40000
|
20000
|
15000
|
15000
|
|
Electrical Life
|
30000
|
20000
|
10000
|
6000
|
4000
|
|
Installation type
|
Fixed
|
About our company-JIELI:
1. JIELI Electrical is abbreviation for" Alliance of JIELI Electrical Industry", with JIELI brand and
ICEDC brand.
2. JIELI Electrical have 29 members and more than 2000 employers, all of the plants area are
about 50000 square meters.
3. JIELI Electrical devoted in producing low-voltage circuit breaker and other related products. .
4.At present, JIELI main products MCB,MCCB,RCCB, Distribution box, AC contactor, Relay,
Switch and more than thousands electrical goods spare parts.
Our service:
1. Samples: provide free samples.
2. Package: all products will be well packed before shipping.
3. Warranty: all products have 2-5 years warranty.
4. Delivery: within 30days after received the deposit.
5. Provide OEM and ODM service.
6. We can help you with any of your idea to design and put it into production.
7. Provide help for building factories, such as: spare parts, technical questions,
financial matter, management problem , approach of sales...
