Touch Panel Waterproof IP67 Single LED Membrane Switch Embossed

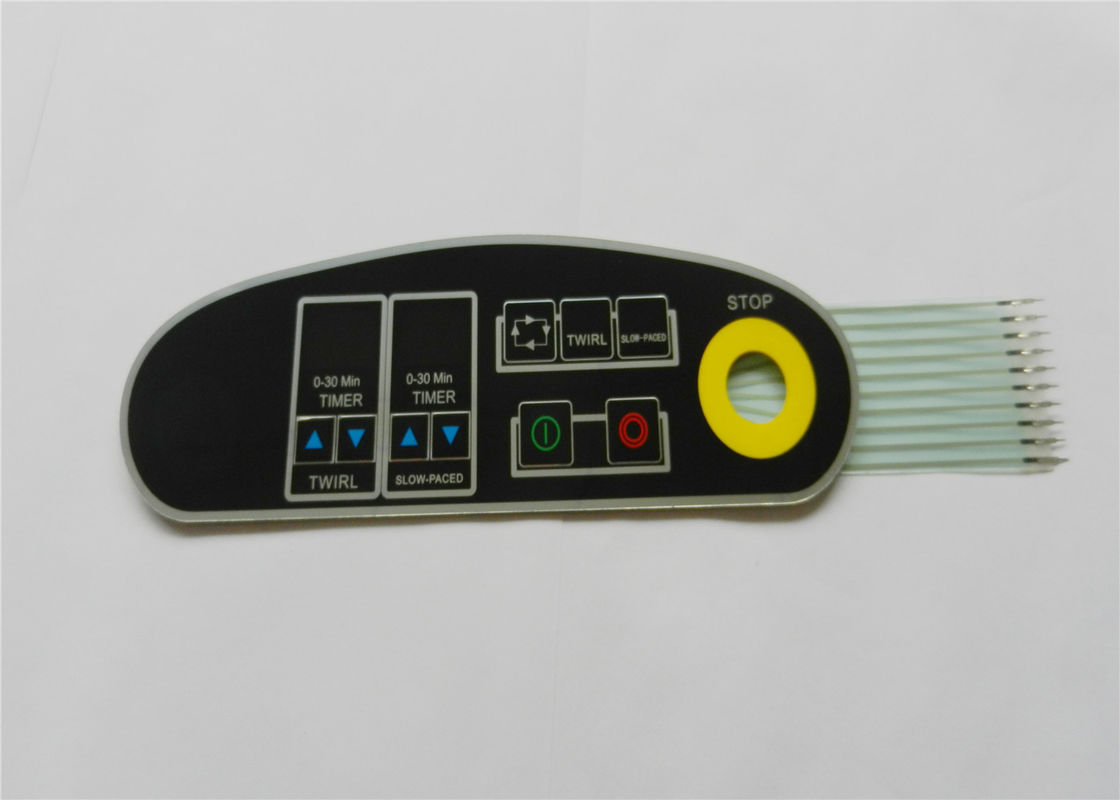

Large Image : Touch Panel Waterproof IP67 Single LED Membrane Switch Embossed

Product Details:

Place of Origin:	Shenzhen
Brand Name:	BEZ
Certification:	ISO9001
Model Number:	390-9-1
Circuit:	0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	negotiation
Packaging Details:	50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time:	7-10 days
Payment Terms:	T T WestUnion
Supply Ability:	1000000 pcs each day

Contact Now

Detailed Product Description

Highlight:	single membrane switch

Touch Panel Waterproof IP67 Single LED Membrane Switch Embossed

Quick Detail:

> Window : glossy
> Pitch : 2.54 mm
> Led light : 4
> Led style : single color
> Conductive side : top
> Single color led : yellow green
> LED window : mate
> LED window embossed : no
> LED window : transparent color coated transparent color washed
> Life span : 1000000 times

Description:

> Circuit crossing : yes
> Conductive side :top side conductive
> Tolerance:0.05 mm
> Water proof class : IP 67
> Connector : without
> Matching color: Pantone and RAL color matching system.

Applications:

1. A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on

B. For mechanical and electrical products such as CNC machine electric weighing ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .

C. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on

3. Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome

Specifications

Size	2.8" to 22"
Constrcution	Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating
Operating Force	10g~100g
Chattering	≤12ms
Surface Hardness	Moths 3
Life Time	More than 1 million touches in one location without failure
Transparency	≥80%
Working Voltage	5.0V
Circuit grade	DC5V 1mA
Insulation impedance	≥20MΩ(25V DC)
Linearity	≤1.5%
Operating Temperature	-30°C to 80°C
Storage Temperature	-40°C to 90°C
Operating Humidity	20%RH ~ 90%RH
Storage Humidity	10%RH ~ 90%RH
Warranty	1years
No noted size common differenc	±0.20

Why to choose Shenzhen boerzhuo membrane switches?

1. No need to worry about the qualities (We take response if our reason lead failure ).
2. Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3. We are specialized ,can help to design and make good suggestion .
4. Except membrane switch and touch screen, we can also do different types of assembly, such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.
5. We can accept small quantity order and offer competitive price.
6. Strict quality inspection ,100 % function testing ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.

A: What’s the lead time for sample and mass order ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
