Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG

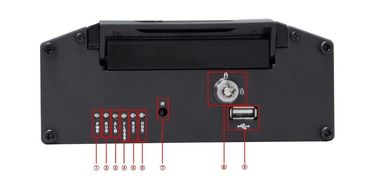

Large Image : Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG

Product Details:

Place of Origin:	China
Brand Name:	Fortunemount
Model Number:	MDVR-B1304WG

Payment & Shipping Terms:

Minimum Order Quantity:	200
Delivery Time:	2 weeks based on sales forecast and 1 month without any sales forecast
Payment Terms:	T/T ; 30% prepayment and balance to be paid before shipment
Supply Ability:	50 000 monthly
Delivery Terms:	FOB Shenzhen

Contact Now

Detailed Product Description

Product Name:	Mobile DVR Recorder	Operating System:	Multi-channel Real-time
Video Compression:	H.264(Main Profile)	Audio Compression:	G.711A
Audio Input:	4 Channel Audio Input	Audio Output:	1ch(200-3000mV,5K)
Highlight:	vehicle video recorder

Support Wifi , GPS 4 Channel Mobile DVR Recorder MDVR-B1304WG

Features:

Special function:Mobile data,GPSdata,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc.

Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.

Playback quality:support 4ch D1 real-time record,multi-channel full real-time playback synchronously.

Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Display:support TV output,taking the lead in HD resolution technology.

Operation interface:similar to Windows operating style, easy to get started with powerful mouse right-click function.

Network:Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.

Browsers:Support multiple web browsers (ie,chrome,firefox, safari)

Remote Access:With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.

Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.

Others:Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes；With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

Ø 4channel Video Input

Ø support 1*SATA hard disks and 2*SD Cardtorage;(HDD Maximum 2T, 2*SD maximum 128G)

Ø support Wifi

Ø not support 3G

Ø support GPS

Specification:

	Model	MDVR-B13043G		MDVR-B1304WG
system	Main processor	Hi3515
	Operating system	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
	System resources	support 16-bit true color graphical menu interface and mouse operation
interface	user interface	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	vdieo compression	H.264(Main Profile)
	display quality	monitor:D1
	play quality	D1/Half-D1/CIF/QCIF
	encode capacity	4ch D1 real-time
	decode capacity	2ch D1 real-time
audio	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
	audio compression	G.711A
Record & playback	bidrectional talk	supported
	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
Storage & backup	search mode	Time/calendar/event/channel search
	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	2.5'SATA,network
interface	backup mode	Network backup,USB,USB Burn
	video input	4ch BNC
	video output	1ch (1.0Vp-p,75Ω)
	audio input	4ch
	audio output	1ch(200-3000mV,5K)
	alarm input	4ch(uncompatible with mobile signal)
	alarm output	no(support 1ch expansion)
	net interface	no
	PTZ control	One RS485 port
	usb	One USB port
	hard disk	One SATA port,max.2T
	GPS	3.5mm audio interface
Mobile interface & functions	GPIO	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input；support vehicle information OSD overlay,storage etc..
	GPS Module (alternative)	Built-in GPS module,support GPS data overlay,timing etc..
	WIFI	Not supported	support RT3070 series module ,same port with USB,support auto registration and upload.
	3G (alternative)	Support EVDO,WCDMA,TD-SCDMA,support auto registration and upload；perfect narrowband transmission strategy,ensuring 3G network media transports steadily and fluently.	Not supported
	others	support delay boot up/shut down
complement	player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data.
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 4* 12V controllable power supply for external camera
	Power consumption	<10W(HDD without)
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	193(length)158(width)66(height)mm
	weight	1.4kg
