Silver / Copper Commercial Isolator Switch Double Pole With 1.25In Breaking Capacity

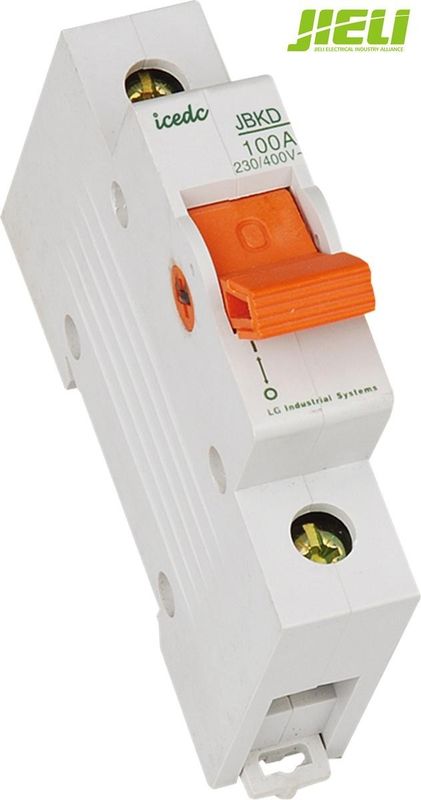

Large Image : Silver / Copper Commercial Isolator Switch Double Pole With 1.25In Breaking Capacity

Product Details:

Place of Origin:	Zhejiang,China(Mainland)
Brand Name:	JIELI
Certification:	CE/ISO9001/IEC60898-1
Model Number:	JL-BKD

Payment & Shipping Terms:

Minimum Order Quantity:	1200 Piece/Pieces other
Price:	Negotiable
Packaging Details:	Standard export carton or according to your request.
Delivery Time:	Within 20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability:	50000POLES/DAY

Contact Now

Detailed Product Description

Highlight:	single pole circuit breakers

Silver / Copper Commercial Isolator Switch Double Pole With 1.25In Breaking Capacity

Quick Detail:

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	JIELI	Model Number:	JL-BKD
Max. Current:	100A	Max. Voltage:	400V	Number of poles:	2P
Enclosure:	PA66	PA66 cover:	Fire resistant

Description:

★JL-BKD Isolator switch is mainly used in circuit with DC voltage 250V up to 400V, current 6A up to 63A for protecting cables and equipment against overload and short circuit. and also for isolation.
★JL-BKD Isolator switch adopts advanced technologies and the latest materials to improve its breaking capacity and electrical life.
★JL-BKD Isolator switch 's highly standard modular design is to reduce variety of parts and improve its reliability.
★The feature of JL-BKD Isolator switchis compact constructive ,small volume, light weight ,advanced current-limit technology,6KA breaking capacity and convenient mounting and so on.
★The main components(expect those easily disable parts) can last as long as up to more than 30,000 hours.All key components are finished by precisely machining, accurately assembling, and finally tested and therefore high quality is reached.

Specifications:

Rated Voltage(V)	230(240)/400(415)
Rated Current(A) In	32,40,63,80,100
Frequency (Hz)	50/60
Short-circuit Bears to Suffer Capacity	Connected to 100A, Fuse to 25KA
Making or Breaking Capacity	1.25In; 1.1Ue
Usage Category	AC22
Connection Wire Cut	Max.50mm²
Protection Grade	IP40
Insulation	Appearance of lear and definite switch Position according to DIN VDE0106
