High Performance Stacked 1000MB SFP Connector RJ45 Combo With LEDs

High Performance Stacked USB RJ45 connector combo, 1000Mb, with LEDs

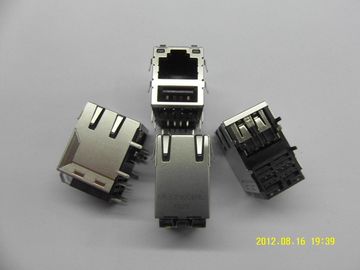

KRJ-008QUSBNL High Performance Shielded USB RJ45 connector, 1000 BASE, with LEDs

Part Number: KRJ-008QUSBNL

• 10/100Base-Tx RJ45 single port 1X1 Right Angle with LEDS with USB

• Single port 1X1 Tab-Up RJ45 with internal magnetics

• Internal magnetics are 100% electrically tested for HI-POT and functionality

• 350uHminimum OCL with 8mA bias current

• High performance for maximum EMI suppression

• Minimum 1500Vrms isolation per IEEE 802.3 requirement

• ROHS-6 peak wave solder temperature rating 260℃

• Operating temperarure range :0℃ to +70℃

• Storage temperature range :-40℃ to +85℃

• Number of positions:8

• Number of contacts loaded:8

• Shield:YES

• Rohs compliant

• LEDS:YES

• EMI fingers:YES

• LEFT LED:Green,RIGHT LED:Yellow

• Usage: KRJ-008QUSBNL

Specifications:

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)

• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold

• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl

• Housing:Phenolic, PBT Black (UL94V-0)

• Metal shell:Copper Alloy ,Tin and Nickel plated

RJ45 ,in order to keep good touch between gold finger and crystal head, should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u, according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
