QY10 Common 16 Points Relay Output Mitsubishi PLC controller with Screw Terminal

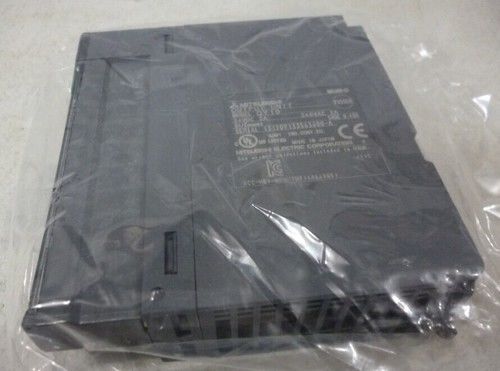

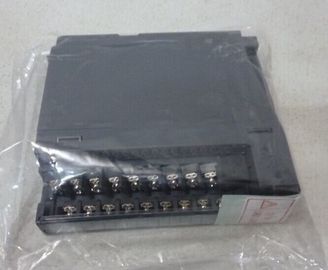

Large Image : QY10 Common 16 Points Relay Output Mitsubishi PLC controller with Screw Terminal

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Model Number:	QY10
Product State:	100% brand new

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	negotiation
Packaging Details:	original Mitsubishi packing
Delivery Time:	3-7 days
Payment Terms:	T/T , Western Union , PayPal
Supply Ability:	1, 000 PCS/week
Shippment Terms:	TNT DHL EMS

Contact Now

Detailed Product Description

Highlight:	ethernet plc controllers

QY10 Common 16 Points Relay Output Mitsubishi PLC controller with Screw Terminal

Quick Detail :

Product Name	Output Type	No. of output Points	Load Voltage	Points/Common	Model
Digital output Module	Relay	16	24VDC/240VAC	16	QY10

Description :

> Digital output modules provide the CPU interface for turning devices in your system on and off under program control.
> Weight (kg): 0.22

Features :

• Relay (contact), sink and source transistor plus triac outputs to handle all common devices
• 16, 32 or 64 outputs per module, depending on module type
• Thermal and short-circuit protection on some modules
• Internal optoisolation
• Removable terminal blocks
• Established A Series connectors (FCN/D-sub type) on 32 and 64 I/O modules for compatibility with existing A Series terminal block (A6TBXY type) installations
• If you need to produce varying signal levels of voltage or current, please refer to the analog output modules section.

Specifications :

Model		QY10
Output type		Relay
No. of output Points		16
Load Voltage		24VDC/240VAC
Maximum Load Current		2A/pt, 8A/common
Response Time (ms)	OFF-ON	10
	ON-OFF	12
External Supply Voltage/Current		N/A
Protection		N/A; use surge suppressor
Points/Common		16
Connection Type		Screw Terminal
Maximum 5VDC Current Consumption (mA)		430
Weight (kg)		0.22
Base Unit Slots Occupied		1

Q Series Mitsubishi PLC Main Units are available as follows :

QY10
QY18A
QY22
QY40P
QY41P
QY42P
QY50
QY68A
QY70
QY71
QY80
QY81P
QY82P
