Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P

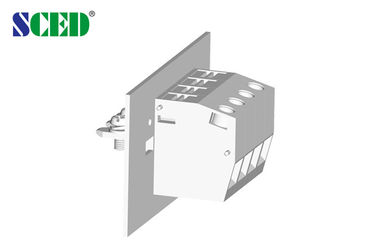

Large Image : Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SCED
Certification:	UL, CE
Model Number:	TR-16N-03

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T
Supply Ability:	100K poles each monthly

Contact Now

Detailed Product Description

Type:	Terminal Block Connector,Terminal Block Connectors, PCB Connectors	Pitch:	12.1mm
Number Of Contacts:	2P-24P	Wire Range:	4-20
Rated Voltage:	600V	Rated Current:	85A
Color:	Black	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Highlight:	plug in terminal block connector

Detailed product Description:

Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P Feed-Through Terminal Blocks / Bulkhead connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Through panel terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks, terminal block connectors

How to order:

Pitch 12.1mm Through Panel Terminal Blocks / Bulkhead Connectors 600V 85A 2P-24P 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 85		600 / 5
Wire Range AWG	4-20		4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 101	800 / 101	1000 / 101
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	16
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Steel / Nickel Plated
Conduction Board / Plating	Copper / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	16
Screw / Torque / lbf.in	M5 / 22-25
