Product Details:
Payment & Shipping Terms:
|
Highlight: | single membrane switch |
---|

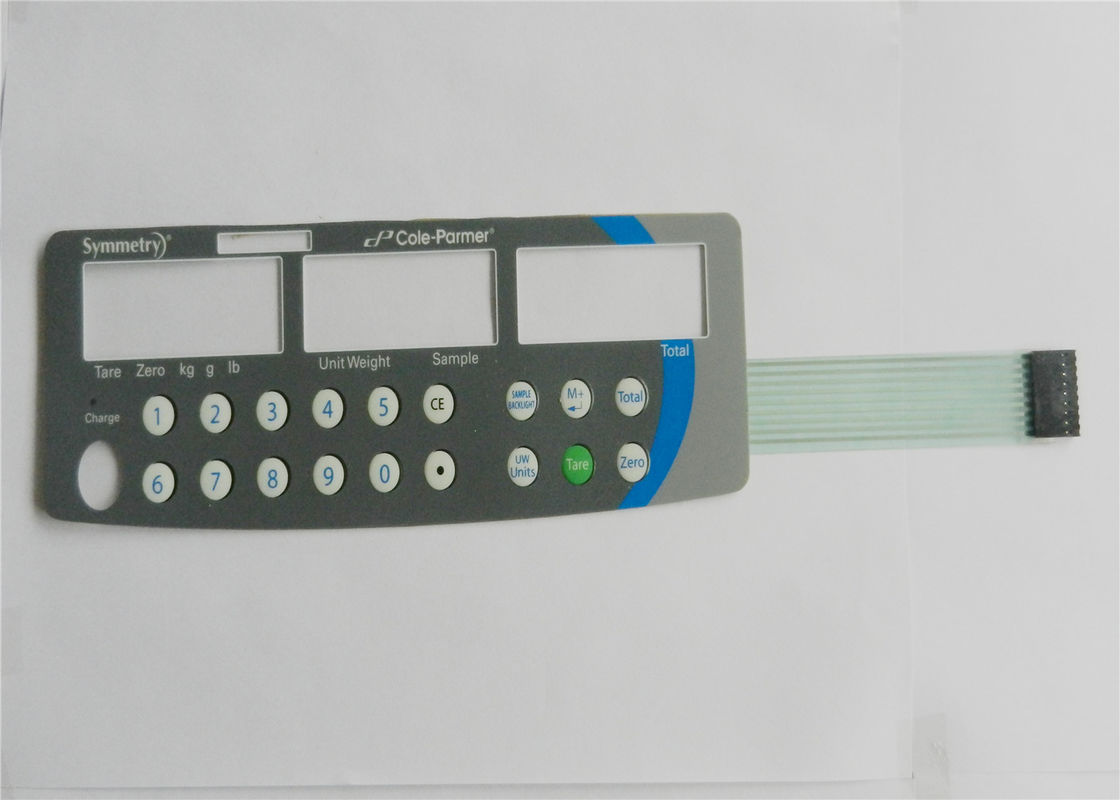

PET / PC Metal Dome Waterproof Membrane Switch With Texture Surface
Quick Detail:
> Total thickness :0.9 mm
> Window : glossy
> Surface : matte> Graphic overlay material : 0.188 glossy PET
> Circuit material : PET

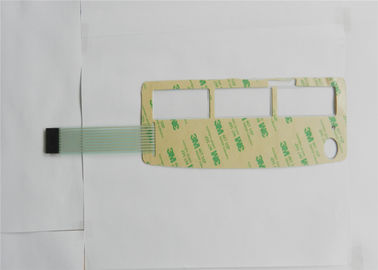

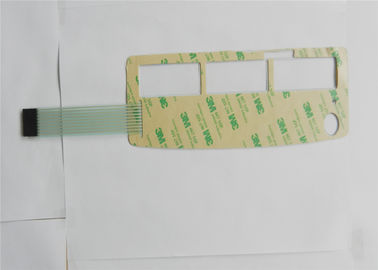

> Rear adhesive : 3M 467
> Button style : embossed
Description:
> Color : 4
> Led window : without
> Circuit crossing : yes
> Conductive side :top side conductive
> Tolerance:0.05 mm
> Water proof class : IP 67
Application:
TV remot control.
Air conditoner control panel
Microwave oven panel
Medical (Diagnostic and Therapeutic)
Exercise Equipment
Test and Measurement
Automotive
Industrial Automation Equipment
Home Therapy and Patient Monitoring
Specifications
1. LED metal dome membrane panel
2. PET/PC material
3. Waterproof
4. Scratch resistant
Beyond 15 years production experienc
1.Environment Conditions |
|
Item |
Value |
Operating Temperature & Humidity |
-20°C - +70°C,< 90 %RH |
Storage Temperature & Humidity |
-30°C - +70°C,< 90 %RH |
ESD protection |
air +/-10KV, touching +/-5KV |
Falling ball(1.1mm tempered glass) |
50g(ball),1m |
Static pressure(1.1mm tempered glass) |
25KG |
Surface hardness |
>7H |
Transmittance |
>85% |
Using durability (Pen Sliding test) |
10 Million times |
|
|
2. Electrical characteristics: |
|
Item |
Value |
Supply voltage |
2.8V~5V |
Current consumption |
Active Mode |
Normal Mode |
|
Sleep Mode |
|
Power Supply Ripple |
100mv P-P max |
Supports a maximum resolution |
2560X1408 |
Interface |
I2C,USB |
response time |
20ms |
Power Supply rise time |
8ms Max |
Linearity |
< 1.5% |
|
|
3.Touch function: |
|
Item |
Value |
Drag, circle, slide, soft keys |
OK |
Multi-touch |
Support up to 10 fingers |
Gesture recognition |
Enlarge, reduce, Rotate |
keys analyzed additionally |
Sliders, wheels, fierce action, long press |
Type of Switch:
Non tactile
graphics
Tactile with stainless steel domes
Tactile with poly domes on the circuit
Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.
A: What’s the lead time for sample and mass order ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..
A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
Contact Person: Mr. fov
Tel: 18810166789
Fax: 86-189-4289-0330
