OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive

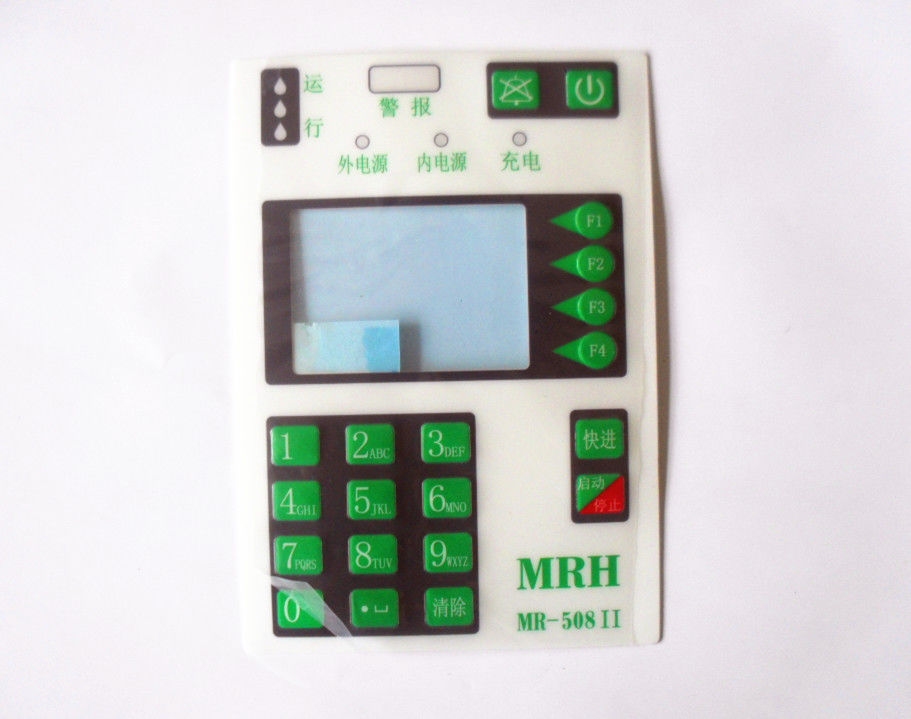

Large Image : OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive

Product Details:

Place of Origin:	Shenzhen
Brand Name:	BEZ
Certification:	ISO9001
Model Number:	390-9-1
Circuit:	0.125 PET or 0.125 flexible PCB keyboard

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	negotiation
Packaging Details:	50 pcs each poly bag and 2000 pcs in carbon box
Delivery Time:	7-10 days
Payment Terms:	T T WestUnion
Supply Ability:	1000000 pcs each day

Contact Now

Detailed Product Description

Membrane Switch:	Waterproof
Highlight:	single membrane switch

OEM Waterproof Membrane Metal Dome Switch keypads With 3m Adhesive

Quick Detail:

> Total thickness :0.82 mm

> Surface : glossy

> Window : glossy

> Graphic overlay material : 0.188 glossy PET

> Circuit material : PET

> Rear adhesive : 3M 467

> Button style : embossed

Description:

> Color : 4

> Led window : without

> Circuit crossing : yes

> Conductive side :top side conductive

> Tolerance:0.05 mm

> Water proof class : IP 67

Specifications

1. LED metal dome membrane panel
2. PET/PC material
3. Waterproof
4. Scratch resistant

Beyond 15 years production experienc

1.Environment Conditions
Item	Value
Operating Temperature & Humidity	-20°C - +70°C,< 90 %RH
Storage Temperature & Humidity	-30°C - +70°C,< 90 %RH
ESD protection	air +/-10KV, touching +/-5KV
Falling ball(1.1mm tempered glass)	50g(ball),1m
Static pressure(1.1mm tempered glass)	25KG
Surface hardness	>7H
Transmittance	>85%
Using durability (Pen Sliding test)	10 Million times

2. Electrical characteristics:
Item	Value
Supply voltage	2.8V~5V
Current consumption	Active Mode
	Normal Mode
	Sleep Mode
Power Supply Ripple	100mv P-P max
Supports a maximum resolution	2560X1408
Interface	I2C,USB
response time	20ms
Power Supply rise time	8ms Max
Linearity	< 1.5%

3.Touch function:
Item	Value
Drag, circle, slide, soft keys	OK
Multi-touch	Support up to 10 fingers
Gesture recognition	Enlarge, reduce, Rotate
keys analyzed additionally	Sliders, wheels, fierce action, long press

Application:

TV remot control.

Air conditoner control panel

Microwave oven panel

Medical (Diagnostic and Therapeutic)

Exercise Equipment

Test and Measurement

Automotive

Industrial Automation Equipment

Home Therapy and Patient Monitoring

Type of Switch:

Non tactile

graphics

Tactile with stainless steel domes

Tactile with poly domes on the circuit

Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.

A: What’s the lead time for sample and mass order ?

B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..

A: How long is your quality guarantee period

B: in usually,3 months.

A:Great, TKS. Do it.
