commercial water treatment equipment

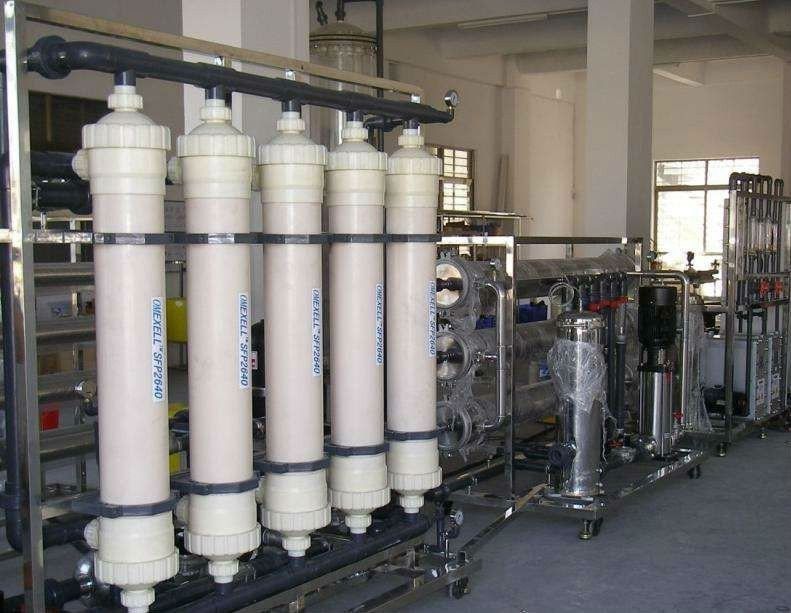

Mineral Drinking Water Treatment Equipments For Ultra Filtration , 10 Micron





Packaging & Delivery



Packaging Detail:	Waterproof shipping packaging. Or according to customer requirements, strech film,  plywood case, woodern box all available.
Delivery Detail:	30 days after downpayment





Specifications:



Ultra filtration systems

1.Hollow fiber filter
2.Spring water. Mineral water treatment
3.PLC control
4.High quality



Ultra filtration systems consist of UF system.



Ultrafiltration is a pressure driven membrane

separation process that removes suspended or

particulate matter (including colloids & silt) from

 water. Ultrafiltration is more reliable than

conventional multimedia filtration that removes

approx. 10 micron or larger matter where a UF

 membrane pore size ranges from 0.01 to

 0.10 micron. Ultrafiltration also efficiently

removes bacteria and most viruses.





Ultra filtration systems



1.Hollow fiber filter
2.Spring water. Mineral water treatment
3.PLC control
4.High quality





Operation Specifications:



· Turbidity < 50 max. 300 NTU

· TSS < 50 max. < 100 mg/L

· TOC < 10 max. < 40 mg/L

· COD max. < 60 mg/L

· pH 6-9 (2-11 cleaning)

· Temperature 25°C (max. 40°C)

· Cl2 0.5 ppm (2,000 cleaning)

· Backwash frequency 20-60 minutes





Applications:





1. Dialysis and other blood treatments

2. Concentration of milk before making cheese

3. Downstream processing (e.g., concentration) of biotechnology-derived proteins (e.g., therapeutic antibodies)

4. Desalting and solvent-exchange of proteins (via diafiltration)

5. Fractionation of proteins

6. Clarification of fruit juice

7. Recovery of vaccines and antibiotics from fermentation broth

8. Laboratory grade water purification

9. Industrial wastewater treatment

10. Drinking water disinfection (including removal of viruses)

11. Removal of endocrines and pesticides combined with Suspended Activated Carbon pretreatment

Ultra filtration systems is consisit of UF system.

Ultrafiltration is a pressure driven membrane separation process that removes suspended or particulate

 matter (including colloids & silt) from water. Ultrafiltration is more reliable than conventional multimedia

filtration that removes approx. 10 micron or larger matter where a UF membrane pore size ranges from

 0.01 to 0.10 micron. Ultrafiltration also efficiently removes bacteria and most viruses.





Ultra filtration systems:



1.Hollow fiber filter
2.Spring water. Mineral water treatment
3.PLC control
4.High quality





Operation Specifications:



· Turbidity < 50 max. 300 NTU

· TSS < 50 max. < 100 mg/L

· TOC < 10 max. < 40 mg/L

· COD max. < 60 mg/L

· pH 6-9 (2-11 cleaning)

· Temperature 25°C (max. 40°C)

· Cl2 0.5 ppm (2,000 cleaning)

· Backwash frequency 20-60 minutes





Applications



1. Dialysis and other blood treatments

2. Concentration of milk before making cheese

3. Downstream processing (e.g., concentration) of

biotechnology-derived proteins (e.g., therapeutic antibodies)

4. Desalting and solvent-exchange of proteins (via diafiltration)

5. Fractionation of proteins

6. Clarification of fruit juice

7. Recovery of vaccines and antibiotics from fermentation broth

8. Laboratory grade water purification

9. Industrial wastewater treatment

10. Drinking water disinfection (including removal of viruses)

11. Removal of endocrines and pesticides combined with Suspended Activated Carbon pretreatment





Ultra filtration systems Applications



· RO pretreatment

· Drinking water treatment

· Tertiary wastewater or grey

· Water treatment

· Process separation or recovery





Ultra filtration systems Standard Features



· UF modules (PVC)

· Stainless steel backwash pump

· 380V/3Ph/50Hz power supply

· Microprocessor control panel

· Motor starters

· Differential pressure switch

· Liquid filled pressure gauges (panel mount)

· Electrically actuated valves

· Flow meter





Available Options



· Chemically Enhanced Backwash (CEB)

      · Feed/backwash oxidizer (dosing system)

· Membrane cleaning skid (CIP)

      · 220-415V/3Ph/50Hz power supply

· Online turbidity monitor

     · Stainless steel multi-stage feed pump

· Feed pump VFD

      · PLC + HMI

· Filtrate (backwash) tank (HDPE)

      · Pressure Transducers

· Blower (for backwash)



The figure below is a typical process flow diagram for a UF system. Ultrafiltration systems eliminate the need for clarifiers and multimedia filters. Standard design is based on a UF module with outside-in flow configuration which allows for less plugging, higher solids loading, higher flow area and easy cleaning. The primary flow design is dead-end filtration. Air scouring is used to enhance backwash.





Competitive Advantage:



JCD WATER is professional manufacturer of water treatment equipments. We provide high quality products with advanced technologies, fast delivery and reasonable cost to meet customers’requirements. Meanwhile we distribute a lot of accessories for convenience of our customers.

JCD WATER covers water treatment equipment manufacturing, system assembling, accessory distributing and supply economic and efficient solutions for water treatment projects.

Within our professional services, we provide you best solutions to assist you win the market, including design, production, maintenance, delivery. Our principle is to make you win, then we win.
