Manual Reset Thermal Overload Protector 50 - 170 17AM-D Self-Hold

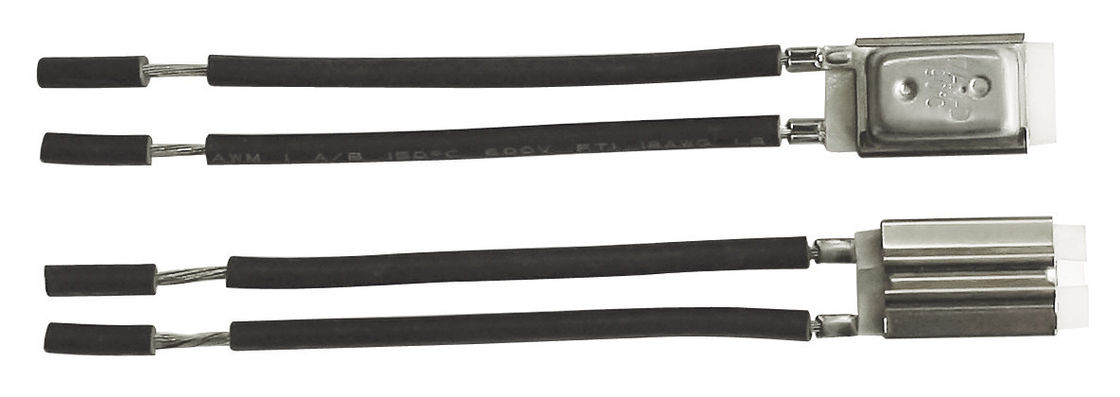

Large Image : Manual Reset Thermal Overload Protector 50 - 170 17AM-D Self-Hold

Product Details:

Place of Origin:	China
Brand Name:	DESHENG
Certification:	UL VDE CE CB KC
Model Number:	17AM-D

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	5000pcs per package
Delivery Time:	3-10 days on order
Payment Terms:	T/T L/C D/P
Supply Ability:	5,000,000pcs/month

Contact Now

Detailed Product Description

Lead Wire:	UL3321 3135 3398 20# Or 18#	Insulation Sleeve:	Mylar Sleeve
Contact Resistance:	50 Ohm Maximum
Highlight:	overload protector

Manual Reset Thermal Overload Protector 50 - 170 17AM-D Self-Hold

Description

The Self-Hold 17AM-D+PTC is a thermal Protector/PTC Heater combination. The PTC Heater is electrically
located across the contacts of the protector. When the protector contacts are open, the heater is in series with the load. The heater then maintains the temperature sensitive bimetal of the protector in an open state. To reset the Self-Hold 17AM-D+PTC, power must be removed for sufficient time to allow the Self-Hold 17AM-D+PTC to cool to below the protector’s reset point.

Specifications

Normally close, open on temperature rise, manual reset
Contact capacity	125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A
Cycles life	6,000-10,000cycles
Open temperature	50°C to 160°C in increments of 5°C
Temperature Tolerance	±5°C
Differential Temperature	depending on open temperature
Seal	High-seal and low-seal gasket material available
Contact resistance	≤100 mW
Insulation resistance	The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.

Applications:

Lightings
Battery packs and battery charger output
Shaded pole motors
Fluorescent lighting ballasts
Washers and dryers
Dishwashers
Transformers
Automotive accessory motors
PC boards
………and more.

Competitive Advantage

1. The strongest Chinese manufacturer, TS16949 and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc

6. Gasketed steel case suitable for most impregnation processes

7. Professional solutions with wide selection of leads and insulating sleeves

8. Bbimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

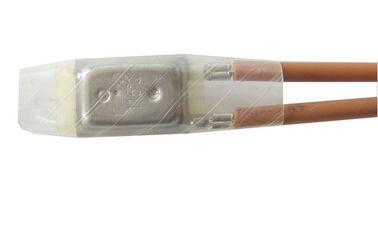

Manual Reset Thermal Overload Protector 50 - 170 17AM-D Self-Hold 0

Type	Opening Temp.	Closing Temp.(only for reference)
17AM-D60	60±5℃	45±10℃
17AM-D65	65±5℃	50±10℃
17AM-D70	70±5℃	50±12℃
17AM-D75	75±5℃	55±12℃
17AM-D80	80±5℃	55±15℃
17AM-D85	85±5℃	60±15℃
17AM-D90	90±5℃	60±15℃
17AM-D95	95±5℃	65±15℃
17AM-D100	100±5℃	65±15℃
17AM-D105	105±5℃	70±15℃
17AM-D110	110±5℃	70±15℃
17AM-D115	115±5℃	75±15℃
17AM-D120	120±5℃	75±15℃
17AM-D125	125±5℃	80±15℃
17AM-D130	130±5℃	85±15℃
17AM-D135	135±5℃	85±15℃
17AM-D140	140±5℃	90±15℃
17AM-D145	145±5℃	95±15℃
17AM-D150	150±5℃	95±15℃
17AM-D155	155±5℃	100±15℃
17AM-D160	160±5℃	105±15℃
