Industrial Intellect Reactive Power Auto Compensation Controller DC 12V

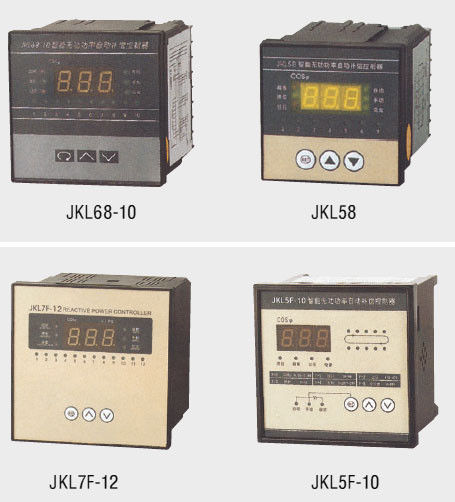

Large Image : Industrial Intellect Reactive Power Auto Compensation Controller DC 12V

Product Details:

Place of Origin:	China
Brand Name:	Wu Yin
Certification:	ISO
Model Number:	JKL7F/5F/68/58
Active or not:	Reactive
Case material:	aluminum\|plastic
Electricity type:	AC\|DC
features:	multi-function
product name:	Compensation Controller
Shape:	Square

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	digital watt hour meter

Industrial Intellect Reactive Power Auto Compensation Controller DC 12V

Application

JKL7F/5F/68/58 series reative power auto-compensate controller adopted the modern advanced monolithic machine technollgy, has the features of the compact structure, strong anti-reference power, easy operation, installation and application. The products have four series and more than ten types, three hole size, that suit for the industrial and mining focus or disperse reactive compensate, line or pole transformer reactive compensate, the dynamic or static state.

Technical function

■ The easy operative user's interface
■ Automatic CT polar check
■ The power supply disconnected, the whole put-in capacitor removed
■ The data store would not lose with the disconnection of the power supply
■ The over-voltage protection
■ Keep the tangent time gap
■ Non-vibration with low load
■ Meet to ZBK44001-89 and DL/T579-96 standard

Technical parameters

Working voltage	380V±15%
Frequency	50Hz
Input current	0~5A
Output power	3A/250V or 30mA/12V
Enveironment temperature	-10℃~+50℃
Install size	72×72mm Depth 113mm
	96×96mm Depth 113mm
	120×120mm Depth 130mm

Function

JKL7F-12	Three controlling type to select:automatic, half-automatic and manual
JKL7F-12	The setting display of the relevant auto-adaptability, power factor, time-dalay, over-voltage and way, Manual anto-set state display
JKL7F-12JBM	Outlet follows the code type:1:2:2:2:2 1:2:4:4: 1:2:4:8
JKL7F-12JRS	With RS485 communcation nozzle, the data store up for 60 days, equipped with electric inspection
JKL5F-10	Standard self-put threshold setting display of the power factor, time-delay, over-voltage and way
JKL5F-12	Standard self-put threshold setting display of the power factor, time-delay, over-voltage and way
JKL5F-10DSK	The real time dynamic controlling response time is 20ms-100ms with each way 12V 30mA
JKL5F-10JKS	The quick put type power factor is less than 0.90, the put time is 2S and outlet with relay
JKL5F-18	The max. Outlet way is 18 ways AND CAN BE SET FROM 13 TO 18 BY THE USER
JKL5F-3×4	The subdivided compensate display the power factor, the current, the active and reactive power
JKL68-10	Standard self-put threshold setting display of the power factor,time-delay, over-voltage and way
JKL68-10DSK	The real time dynamic controlling response time is 20ms-100ms with each way 12V 30mA
JKL68-10JKS	The quick put type power factor is less than 0.90, the put time is 2S and outlet with relay
JKL68-10BM	Outlet follows the code type:1:2:2:2:2 1:2:4:4: 1:2:4:8
JKL58-5	Standard self-put threshold setting display of the powr factor, time-delay, over-voltage and way
JKL58-7	Display the power factor, the voltage, the current, the active power, and the reactive power and put threshold setting
JKL58-7DSK	The quick put type power factor is less than 0.90, the put time is 2S and outlet with relay
JKL58-7JKS	The real time dynamic controlling response time is 20ms-100ms with each way 12V 30mA
JKL58-7DBM	Outlet follows the code type:1:2:2:2:2 1:2:4:4: 1:2:4:8
