IEC 60898 2P AC Residual Current Circuit Breaker 230V 220V 6000A 20kA

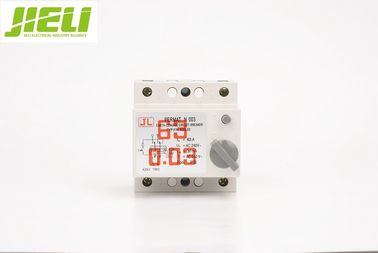

Large Image : IEC 60898 2P AC Residual Current Circuit Breaker 230V 220V 6000A 20kA

Product Details:

Place of Origin:	Zhejiang,China(Mainland)
Brand Name:	JIELI
Certification:	CE/ISO9001/IEC60898-1
Model Number:	JL-FIN

Payment & Shipping Terms:

Minimum Order Quantity:	1200 Piece/Pieces other
Price:	Negotiable
Packaging Details:	The carton is strong enough for sea and air shipment, residual current circuit breaker will be designed according to your requirement.
Delivery Time:	Within 20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability:	100000pieces per month.

Contact Now

Detailed Product Description

Highlight:	earth leakage circuit breaker

JL-FIN 2P AC type residual current circuit breaker with perfect quality

Quick Detail:

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	JIELI	Model Number:	JL-FIN residual current circuit breaker
Type:	Residual current circuit breaker	Poles Number:	2,4P	Rated Voltage :	230(220V)
Rated Current :	16,20,25,32,40,63	No.of poles :	2P,4P	Installation:	Din Rail
Rated fuse short current:	20kA	Standard :	IEC 60898	Breaking Capacity:	6000A
Rated frequency :	50/60HZ

Description:

Residual Current Circuit Breaker with over-current protection (Electronic)

JL-FIN Operated Residual Current circuit breaker provides the function of isolation Switching and earth leakage protection of electrical circuits.

And JL-FIN Operated Residual Current circuit breaker also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical Circuit fault.

JL-FIN Operated Residual Current circuit breaker is conformity with GB16917.1,IEC60898-1 standards.

Applications:

JL-FIN Operated Residual Current circuit breaker serves in the line of AC 50HZ,rated voltage 230V and rated current up to 40A to automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value.

JL-FIN Operated Residual Current circuit breaker can effectively protect personal security and avoid the damage to equipments.

JL-FIN Operated Residual Current circuit breaker can also function as overload and shortcircuit protection and unfrequent changeover of line under normal condition.

Specifications:

Type	JL-FIN residual current circuit breaker
Number of poles	2P ,4P
Rated Current(In)	6A,10A,16A,25A,40A,63A,80A,100A
Rated residual operating current( In)	10mA,30mA,100mA,300mA,500mA
Rated residual non-operation Current( Ino)	0.5 IIn, 5 IIn
Rated Voltage(Un)	AC 2P:230/240V 4P:400V/415V
Residual operating current scope	0.5 IIn1 IIn
Residual current off-time	≤0.1s
Type	A,AC
Ultimate short-circuit breaking capacity (Inc)	6000A
Endurance	≥4000
Terminal protection	IP20

Competitive Advantage

1. JL-FIN Operated Residual Current circuit breaker is With higher rated ultimate short circuit, up to 6KA.
2. JL-FIN Operated Residual Current circuit breaker is Reliable, accurate and convenient adjustment of product instantaneous action ensured.
3. JL-FIN Operated Residual Current circuit breaker’ service life of product has been greatly enhanced through specially designed tripping mechanism.
