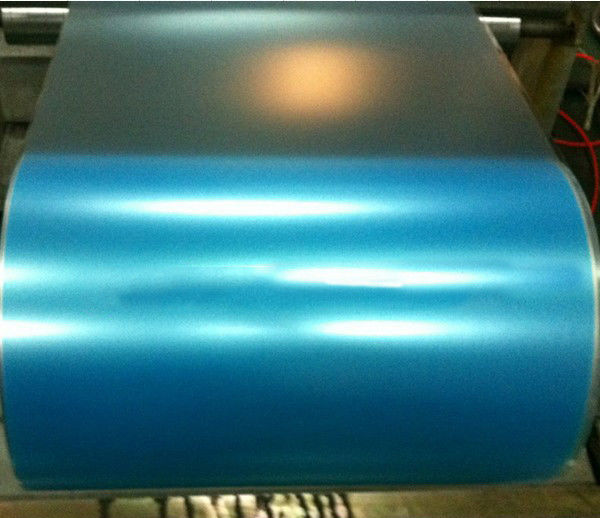

Hard Coated PET transparent protective film IMD IML Membrane Switch

Hard Coated PET transparent protective film IMD IML Membrane Switch
Hard Coated PET transparent protective film IMD IML Membrane Switch

Large Image :  Hard Coated PET transparent protective film IMD IML Membrane Switch

Product Details:
Place of Origin: GuangDong, China
Brand Name: YinSha
Certification: ISO9001,ISO14001,SGS
Model Number: HC SERIES
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Standard Packing
Delivery Time: 3days after confirmed the PO if stocks are available
Payment Terms: T/T
Contact Now
Detailed Product Description
Highlight:

PET protection film

Hard Coated PET transparent protective film IMD IML Membrane Switch



Quick Details

Material:
PET
 Usage:
Printing
 Hardness:
Soft
Transparency:
Transparent
 Place of Origin:
GuangDong(China)
 Brand Name:
YinSha
Model Number:
HC-Series
 Base Film Thickness:
100um-250um
 Width:
500mm-1000mm
length:
200m
 core size:
3"



Specifications

1. Good hardness, 3H or above, anti scratch property is well.

2. Good printing adhesion force

3. IMD IML suitable
4. High clarity, less crystal points

5. Both sides with protective film, Blue or other color PE protective film in printing side and the hard coated side is transparrent PET protective film




Property

Item Unit Value Test methods
Tensile strength Mpa MD 135 TD 156 ASTM D 882
Elongation at break % MD 141 TD 116 ASTM D 882
Heat shrinkage rate % MD 1.0 TD 0.1 ASTM D 1204 150°C 30min
Transmittance % 95.0 ASTM D 1746
Haze % 1.0 ASTM D 1746
Surface hardness _ 3H JIN-K-5400
Peel strength _ 100/100 3M tape



Application

  •  Membrane switch,

  •  Instrument panel,

  •  Nameplate,

  •  Household appliances panel,

  •  Remote control.





Way of contacting:

Tel:  86-755-8958 5551

Fax: 86-755-8958 5550

Mobile: 86-158-8955 9237

Name: Ms Jenny
