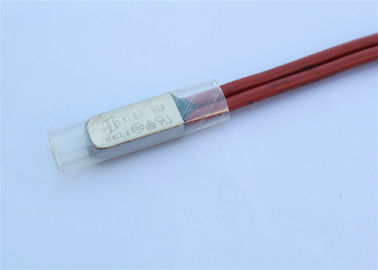

Electric Motor Thermal Overload Protector Metal PTC Sensor , 250V 5A BW9700

Description:

Electric Motor Thermal Overload Protector Metal PTC Sensor

Electric Motor Thermal Overload Protector Metal PTC Sensor is a bi-metal temperature sensing thermostat. The bimetal is in free state, the contact is in closed or disconnection state. When the temperature rises to action temperature, the bimetallic element to heat stress and rapidly generate action open / close contact, off / on the circuit, and thus play a role in thermal protection. When it getting down to the preset temperature, the contact can open / close automatically, then it will return to normal working condition.

Quick Detail:

1. Thermal Overload Protector

2. Action temperature range: 50℃～160℃

3. Certifications: CQC,VDE,UL

4. Current and voltage: 250V 10A

Applications:

Thermal Overload Protector range of applications

● Ballast
● fluorescent
● Motor
● Transformers
● laminator
● Rechargeable battery
● Solenoid
● Appliances
● PCB board

Specifications:

1. Thermal Overload Protector Overall Dimensions:

2. Electrical Specification

3. A-C Curve Diagram

●The critical current & ambient temperature curve(Note: the current will effect to the open temperature)

4. General Temperature Specification:

Certifications

Competitive Advantage:

1. More than 20years manufacturing experience;

2. Owns unique R&D center and quality control center;

3. Equipped with multiple sets of advanced machines which imported from Germany;

4. We have got UL/CUL, TUV,VDE, RoHS, CQC certifications;
