Durable Thermal Overload Protector 20A 24VDC / 20A 125VAC / 12A 250VAC drier

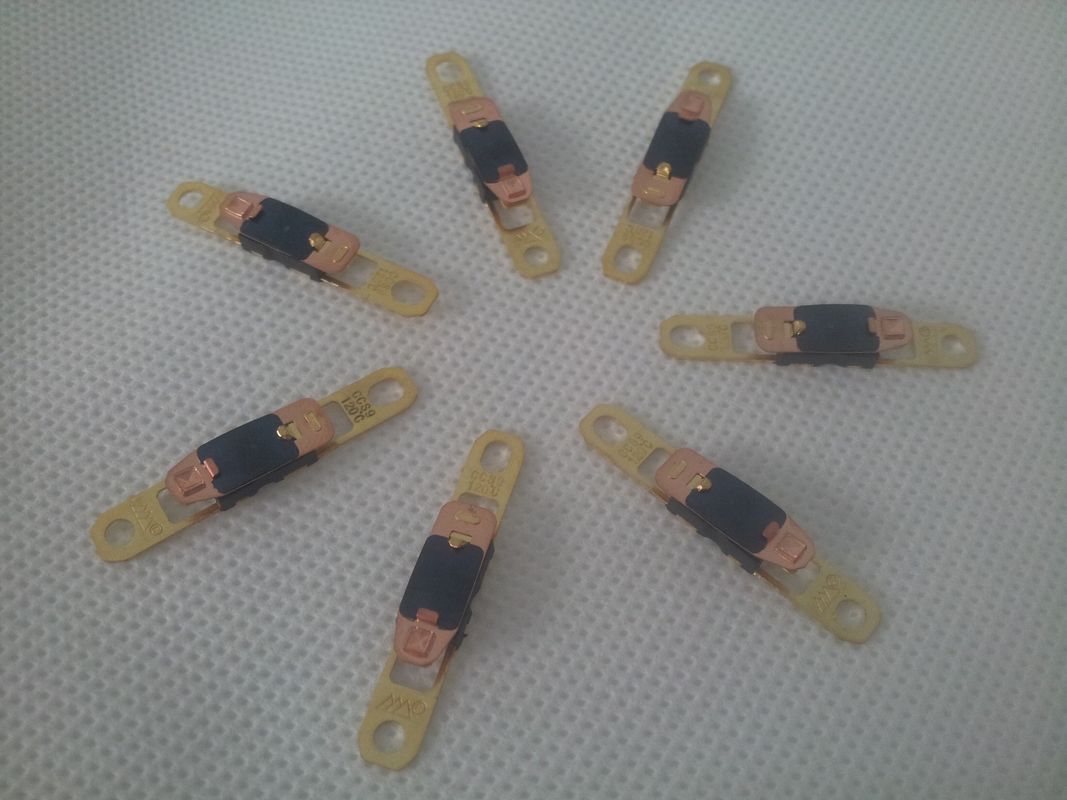

Large Image : Durable Thermal Overload Protector 20A 24VDC / 20A 125VAC / 12A 250VAC drier

Product Details:

Place of Origin:	China
Brand Name:	DESHENG
Certification:	UL TUV
Model Number:	CCS9

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Packaging Details:	1000pcs per inner box
Delivery Time:	5 days on order date
Payment Terms:	T/T
Supply Ability:	1500000pcs per month

Contact Now

Detailed Product Description

Temperature Range:	From 80 To 150 Degree	Contact Resistance:	50 Ohm Maximum
Contact Capacity:	20A /24VDC 20A /125VAC 12A /250VAC
Highlight:	motor thermal protection

Durable drier Thermal Overload Protector 20A 24VDC / 20A 125VAC / 12A 250VAC

Principle and structure:

DS series thermal protector is a kind heating protector with an open structure. It is ideal
protectors for pet drier, industrial heating gun, and heaters, etc, for its prompt snap action and
accurate cutout temperature.

At the heart of the device is a bimetal snap-action disc. When the temperature of this disc
reaches its pre-calibrated temperature, it snaps open, resulting in an open circuit. This
temperature is reached during a fault condition caused by an increase in ambient temperature.
After the device breaks the circuit, the system cools and automatically resets allowing power to
be restored to the circuit.

◆ Contact capacity:
20A /24VDC 20A /125VAC 12A /250VAC
Temperature specification:
Open temperature: 50~150±5℃; one gear every 5℃.
ON-OFF differential ＞10℃

◆ Cycles:
6000 cycles @ rated current and voltage.

◆ Safety certifications
UL: E465826 TUV: R50279441
