kilowatt hour meter

Digital Electronic Watt-hour Meter , Active or Reactive KWH meter with LED display


Digital Panel Meter

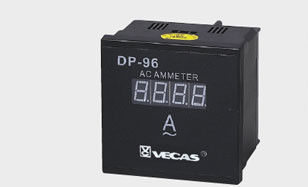

Digital AC Ammeter
Function:Measure AC current
Model:DP-D96A-AC,DP-D72A-AC,DP-D48A-AC

Feature:

■  Display:3 1/2 digital, LED display(red or green)
■  Accuracy:0.5%±1digit
■  Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■  Input signal:AC current
■  Measuring range:0-20A AC, For the current over 20A can use the AC current transformer.
■  Consumption:<3.2VA
■  Max Singal Consumption:<0.3VA
■  Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■  Storage Environment:temperature-30℃~+60℃humidity:≤70%
■  Heat resistance:case of non-combustible plastic material
■  Voltage Testing:over 2000V
■  Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side.

Digital AC Voltmeter
Function:Measure AC Voltage
Model:DP-D96A-AC,DP-D72A-AC,DP-D48A-AC

Feature:

■ Display:3 1/2 digital, LED display(red or green)
■ Accuracy:0.5%±1digit
■ Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■ Input signal:AC current
■ Measuring range:0-600A AC, For the Voltage over 600V can use the the potential transformer
■ Consumption:<3.2VA
■ Max Singal Consumption:<0.3VA
■ Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■ Storage Environment:temperature-30℃~+60℃humidity:≤70%
■ Heat resistance:case of non-combustible plastic material
■ Voltage Testing:over 2000V
■ Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side.



Digital AC Ammeter
Model:DP-D96A-DC,DP-D72A-DC,DP-D48A-DC


Feature:

■  Display:3 1/2 digital, LED display(red or green)
■  Accuracy:0.5%±1digit
■  Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■  Input signal:DC current
■  Measuring range:0-20A DC, For the current over 20A can use external shunt
■  Consumption:<3.2VA
■  Max Singal Consumption:<0.3VA
■  Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■  Storage Environment:temperature-30℃~+60℃humidity:≤70%
■  Heat resistance:case of non-combustible plastic material
■  Voltage Testing:over 2000V
■  Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side

Digital AC Ammeter
Model:DP-D96V-DC,DP-D72V-DC,DP-D48A-DC

Feature:
■ Display:3 1/2 digital, LED display(red or green)
■ Accuracy:0.5%±1digit
■ Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■ Input signal:AC Voltage
■ Measuring range:0-600A DC or according to your own requirement
■ Consumption:<3.2VA
■ Max Singal Consumption:<0.3VA
■ Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■ Storage Environment:temperature-30℃~+60℃humidity:≤70%
■ Heat resistance:case of non-combustible plastic material
■ Voltage Testing:over 2000V
■ Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side.

Digital Frequency Meter
Model:DP-D96F,DP-D72F,DP-D48F

Feature:

■ Display:4 digital, LED display(red or green)
■ Accuracy:0.2%±1digit
■ Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■ Input signal:AC Voltage, rated singal value:0~600V(admissible input Voltage error 80%+100)
■ Measuring range:0-1M Hz
■ Consumption:<3.2VA
■ Max Singal Consumption:<0.3VA
■ Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■ Storage Environment:temperature-30℃~+60℃humidity:≤70%
■ Heat resistance:case of non-combustible plastic material
■ Voltage Testing:over 2000V
■ Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side.



Digital Power Factor Meter COS φ
Single Phase Model:DP-D96PF1,DP-D72PF1
Three Phase Model:DP-D96PF3,DP-D72PF3

Feature:

■ Display:4 digital, LED display(red or green)
■ Accuracy:0.5%±1digit
■ Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■ Input signal:Voltage 100V 200V 380V or according to the requirement current:0-1A or 0-5A
■ Measuring range:0-1.00(C or L)
■ Consumption:<3.2VA
■ Max Singal Consumption:<0.3VA
■ Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■ Storage Environment:temperature-30℃~+60℃humidity:≤70%
■ Heat resistance:case of non-combustible plastic material
■ Voltage Testing:over 2000V
■ Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side.

Digital Power Meter
Model:DP-D96W(Var),DP-D72W(Var)
Function:measure the single phase Wattmeter,single phase Varmeter,3P3W wattmeter,3P3W Varmeter,3P4W Wattmeter or 3P4W Varmeter.

Feature:

■ Display:4 1/2 digital, LED display(red or green)
■ Accuracy:1.0%±3digit
■ Auxiliary power:AC 110V±10%50/60Hz AC 220V±10%50/60Hz
■ Input signal:Voltage 100V 200V 380V or according to the requirement current 0-5A
■ Measuring range:all ranges
■ Consumption:<3.2VA
■ Max Singal Consumption:<0.3VA
■ Operationg Environment:temperature-10℃~+50℃humidity:≤85%
■ Storage Environment:temperature-30℃~+60℃humidity:≤70%
■ Heat resistance:case of non-combustible plastic material
■ Voltage Testing:over 2000V
■ Fastening:By means of nuts, absolutely safe, fast, robust, side-by-side

Size Of Rectangular Type Meter



The ltem B for the size of panel cut-out of swithboard.
