Control Feel Smooth Graphic Overlay Panel With LCD And LED Transparent Windows

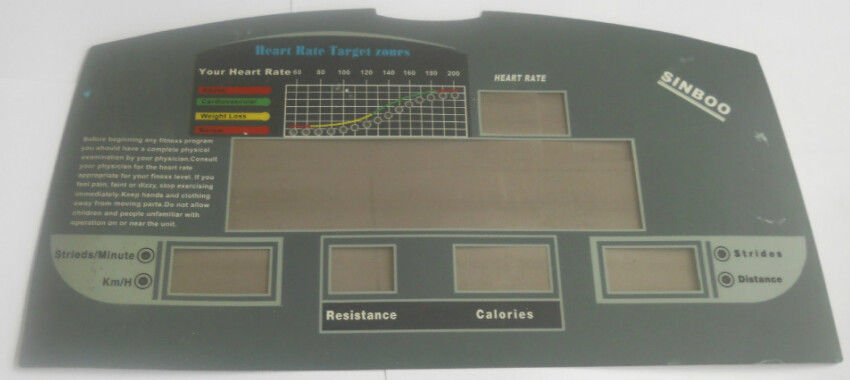

Large Image : Control Feel Smooth Graphic Overlay Panel With LCD And LED Transparent Windows

Product Details:

Place of Origin:	China
Brand Name:	TKM MS
Certification:	ISO9001:2008, SGS,Rohs
Model Number:	TKM—MS--321

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiation
Packaging Details:	Polybag per pcs，50per cartoon
Delivery Time:	15-20days
Payment Terms:	T/T or L/C
Supply Ability:	100000Pieces per month

Contact Now

Detailed Product Description

Highlight:	graphics and overlays

PET Film Multi Touch Graphic Overlay Panel With LCD And LED Transparent Windows

Quick Detail:

Name	LCD GO	Application	Electric products
Color	Transparent,red,yellow, green,blue.Pink.,purple	Feature	Large screen
Contacts	10	Surface hardness	>7
Operating Temperature	OPL = -10, TOPH =60	Storage Temperature	TSTL = -20, TSTH

Descriptions:

Graphic Overlay Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel

Applications:

Our membrane switches are widely used in :
• Medical Equipment
• Telecommunications apparatus
• Telephone systems
• Household appliances
• Security systems
• Point of sale apparatus
• Industrial controls
• Toys

Competitive Advantage:
Hard wear,
corrosion resistance,
high transmittance,
control feel smooth,
high reliability

Specifications

Lens Color	Black/White
Input force	＜10g
Surface hardness	＞6H
Interface Type	IIC
IC Type IC	FT5406
Number of touchpoint	5,10
Sensor thickness ITO	0.55mm
TP size	7inch
View Area	190.02*133.47mm
Active Area(W*L)	193.02*136.47mm
Outline	Drawings subject to confirmation
Coverlens thickness	0.7mm

The main technical parameters

1.Contact resistance: ＜1Ω /cm
2.Insulation resistance: ＜100MΩ (250V DC)
3.operating voltage: ≤ 50VDC
4.working current: 25- 100mA,0-30V DC
5.reliability, service life:＜1 million times
6.operating temperature: -40 ℃ ~ +70 ℃
7.Operating humidity:when40°C,＜98%RH
8.spring time: ≤ 5ms
9.substrate voltage: 2000V DC
10.Tail flexiblility:any angle within 180 degree
11.Switch travel:Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
