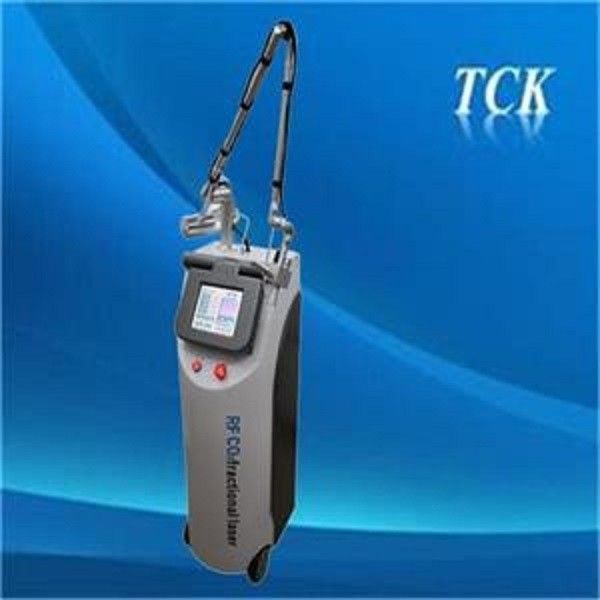

Co2 Fractional Laser Machine for Acne and Scar Removal with Painless
Principle:
Fractional photothermolysis creates an array of microscopic thermal wounds, called microscopic treatment zones, at specific depths. Unlike other ablative and nonablative lasers, which produce layers of thermal heating, the FP creates microscopic columns of thermal damage, sparing surrounding tissues and promoting more rapid healing. The FP treatment results which are collagen remodeling and skin turnover are excellent. Removing lentigines and other discolorations and producing fresher, tighter, and more youthful skin could be little to no downtime.
Functions
- Scar removal All kinds of excavated type of scars, Like traumatic scars, surgical scars, hypertrophic scar and smallpox scar,etc.
- Wrinkle removal Remove wrinkles around eyes, such as crow's feet, etc. Remove wrinkles on the forehead and around mouth.
- Skin rejuvenation skin lifting, Laser skin resurfacing.
- Surgery and Dermatologyoperation cauterize, incise, solidify and radiate for tissue of human body.
- Removal Nevus and Warts,etc. Small tumor of the skin resection.
- Remove stretch marks and other kinds pitting scar,acne scars.
- Remove melasma, freckles, age spots,etc.
- Improve tone and texture on the chest, arms, and hands
- Improve the followong problems: Wrinkles,rhytides,furrows, fine line, textural irregularities, pigmented lesions, vascular dyschromia .
Advantages
- Scan mirror:made in Germany, so the accuracy of the treatment is very good, the speed is fast, then the treatment is very good.
- guide light arm: 7 joint articulated arm, high quality, accuracy is great.
- power supply: high quality, and high power, , super pulse can reach 1000HZ/s, but lots of company only 500HZ/s. so the energy is high, treatment speed is fast, skin damage is small.
- spot diameter is small, so the treatment spot is small, wound area is small, recover much faster.
- every spot is same, include the depth, size, and no miss spot in the treatment area, shape is not any distortion.
- speed is more than 10m/s, so the thermal damage is small, and less pain.
- density, depth, and shape, all can be adjusted, very convenient.
- scan models: free scan, sequence scan, maximum distance scan, free scan and maximum distance scan technology, diffuse the heat of adjacent organizations, not form heat buildup, reduce thermal damage and reduce the various complications.
- four treatment heads, can be used for different treatment, very convenient.
- 7 different scan shape, adapt to different customer’s request.
- distance: 0.1mm-2.6mm, lots of other company only reach 2mm.
- power: 30W, but lots of company only 12W, 15W, can cut thick A4 paper at 15-18W .
spec
| Wave length |
10.6 um |
| Max power |
30 Watts |
| Scan mode |
Random, sequence, convergence , diagonal even/odd etc |
| Laser type |
RF driver CO2 laser |
| Laser mode |
TEMoo |
| Laser Work mode |
Ultra pulse ,fractional CW |
| Output way |
Fractional beam& scan beam |
| Dot number |
at most 3000 dots |
| Scan Graphics |
Square ,circle ,rectangular ,triangle ,line, customized graphics |
| Spot distance(pitch) |
0.1-2.6mm(adjustable) |
| Spot size |
0.2mm |
| Power |
100mj |
| Penetrate depth |
2mm |
| Pulse duration |
0.1-20ms for optional |
| Overlay |
1 to 20 times |
| Control system |
10.4 inch big color touch screen |
| Conduct system |
seven-joints laser articulated arms |
| Cooling system |
wind cooling system |
| Body material |
ABS |
| Size |
131cm(L)*60cm(W)*53cm(H) main machine |
| |
75cm(L)*15cm(W)*23cm(H) accessories |
| Gross Weight |
75KG |
| Voltage |
220V/110V, 50/60HZ 10A |
About us
Beijing TCK is a large professional company engaging in research & development as well as production and sales of medical treatment laser in an early time in Beijing, China. Our products have been sold to USA, Korea, Japan, Canada and other countries, and accepted by the clients with its excellent quality and reasonable prices.
By introducing the advanced technology from abroad, it developed RG series products such as Laser system, Laser skin care system, IPL system, E light system, magnetic system, CO2 system all of which exercise a effective treatment against birthmarks, nevus, splashes, flecks and speckles, blood streaks, wrinkles,excessive hair for face & limbs, meanwhile can claim to function well towards tattoo, eyebrow drawing, lip mark lines and eye mark lines.
FAQ
Q: What’s the delivery?
A:We offer the door to door services by DHL air expression. We can also offer other trasportation ways according to your demands. Such as EMS, UPS, TNT, FEDEX…
Q: What’s the delivery time?
A:The time period is 3-7 working days.
Q: What’s the package?
A:Strong and beautiful aluminum alloy case
Q: What’s the payment method?
A:T/T, WESTERN UNION, …
Q: Do you have any timely technology supports?
A: Our company has a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, webcam, online chat ( skype, whatsAPP…).
Q: If the machines broken during the shipment, will you support us?
A: Actually, our customer will purchase the insurance before shipment, avoid any money lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
Q: Tell me about your OEM/ODM service?
A: As we are a professional beauty machine manufacture in china, we can offer every distributor and dealer the OEM/ODM Service without any design charge,any advice from our customer there is hot welcome! We can add your logo on the machine screen for free. You can choose any color you like for machine!
