change-over switch

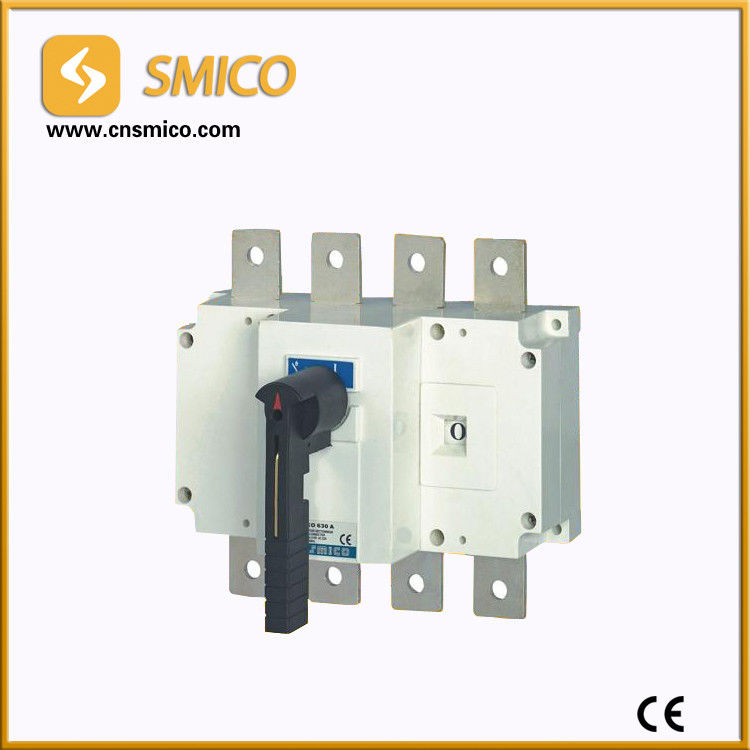

SGL load switch is mainly applied in the circuit with voltage up to 690V, rated frequency
of 50Hz, and rated current up to 3,200A for making and breaking circuit or isolating
functions in power distribution circuit.

It is classified into 11 specifications from 100A to 3,200A with basic types of modularization design, applied for making and breaking or electric isolation to the current above 1,000A.

The product complies with the standards of IEC60947-3 and GB14048.3.

Specifications:
1) Operation modes:
a) Front operated (125 - 3,200A)
b) Breast operated (125 - 1,600A)
2) Operation types:
a) Direct operation (cabinet-inside operation)
b) Cabinet-outside operation
3) Poles no.: 3 poles and 4 poles
4) Service of rated working: 8 hours
