Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision

Large Image : Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision

Product Details:

Place of Origin:	China
Brand Name:	H-WELDING
Certification:	CE
Model Number:	SXBJ-15

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	400mm Milling Thickness Edge Milling Machine	Application:	Steel Sheet Milling
Press Type:	Hydraulic Power	Milling Length:	12m
Milling Head:	Taiwan E-long	Milling Head Power:	7.5kw *2
Hydraulic Jack NO.:	15	Milling Thickness:	6-60mm
Milling Angle:	0°～45° /-45°～0°	Beveling Type:	X,J,V
Highlight:	large milling machine

400mm Milling Thickness Edge Milling Machine With Sandvik Milling Facer For X , V , J Beveling With Feeding Rack

Specifications:

Model Main parameter	TX 32A Milling head		TX-40A Milling head
	32YXBJ-15	32XBJ-18	40YXBJ-15	40YXBJ-18
Max. Part length	15M	18M	15M	18M
Plate thickness	6-160mm
Plate width(the machining side is parallel )	400-1000mm
Milling angle	0^o milling angle is not adjustable
Milling head model	TX-32A		TX-40A
Milling head motor power and revote speed	5.5KW,1440r/min		7.5KW,1440r/min
Facer diameter	D=125-320mm(out factory with Ø200 facer )		D=160-400mm(out factory with Ø200 facer )
Main axes revote speed	125-630r/min7 grade		100-630r/min2 grade
Milling transverse traveling stroke	400mm
Milling speed	0.1-1.0m/min
Milling free speed	Vfast =5m/mi rapid backing motor driving
Press way	Hydraulic powered (about 3.5mpa) or gas cylinder powered (6kg/cm2)

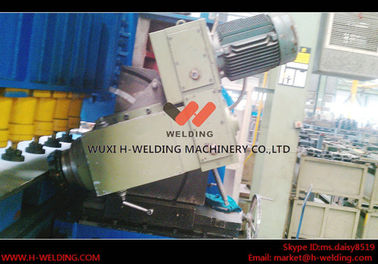

Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision 0

Description:

There are manual lubricate pump on the milling moving unit, and it can drop lube to two sets of rails, in order to make sure that there are lube film on the rail face.

Applications:

Milling head forward and

backward stroke

300mm

Milling head up and

down stroke

300mm

Hydraulic press jack No.

24sets

Competitive Advantage:

It has the automatic hydraulic press jack and manual screw jack at the down position and press the work piece reliable, which can avoid the milling shaking and decrease the noise.
The hydraulic cylinder press work piece, beam has normal spring deformation and spring upward, after release the hydraulic cylinder it will reset.

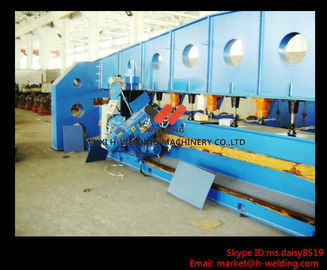

Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision 1

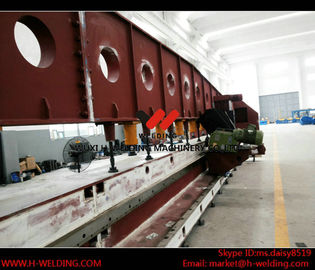

Automated Metal Sheet Plate Edge Milling / Beveling Machine High Precision 2
