Hot Sell Plastic Packaging Machine Of  Air Column Bag Machine For Liquid And Powder Packing

Making Cushion Plastic Packaging Machine Of Air Column Bag Machine for Packing Fragile Cargo

Promivision air cushion making machine

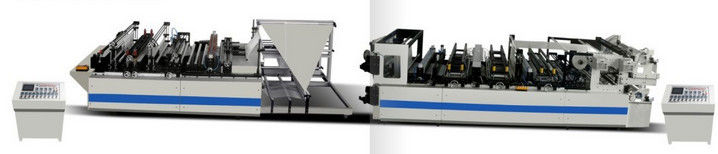

This production line uses PE/PA co-extruded film and the air valve film to weld air column sheet first, then fold the air column sheet to the desired bag pattern, and then seal and cut to get the finished air column bags. Wide range of bag patterns can be achieved by this line such as Q bag, U bag, Cap, Pad, etc., for different cushion packaging requirement. Promivision fully automatic high speed air column bag production line boasts high efficiency, versatility and flexibility.

Cushion Air Column Welding Machine  Model P-1200

Technical Parameters:

Membrane Roll Size: Max. roll width: 1250mm

                Max. roll diameter:500mm

The Highest Speed of Column Pressing: 18 cycles/min.(Speed adjustable)

                  20 mm column- 14 columns per pressing

                  30 mm column- 10 columns per pressing

                  40 mm column- 7 columns per pressing

                  60 mm column- 5 columns per pressing

The Max. Width of Pressed Column: 1220mm

Column Pressing Parameters: Realized via PLC control panel for column pressing speed, welding temperature, pressing time, standards compensation, etc.

Power consumption: 15.2 kw

Air supply:0.68MPA

Weight:2800kg

Dimensions:  5320 X 1800 X 1680 mm

Cushion Air Column Bag Forming Machine     P-800

Technical Parameters:

Membrane Roll Size: Max. roll width: 1250mm

                  Max. roll diameter:400mm

Speed : >24 pcs/min.

Max. Bag Width:  <900mm

Max. Bag Length: <750mm

Bag Making Parameters: Realized by PCL control panel for setting pressing time, pressing temperature, standards compensation, roll-unwinding, automatic variation correction system

Power consumption: 2.7 kw

Air supply: 0.65MPA

Weight: 1800kg

Dimensions: 4400 X 2400 X 1480 mm

Core Benefits of Cushion Air Column Bags

1. 5 or 7 layer PE/PA co-extruded film deliver high strength and superior airtightness, which ensure the optimum cushion performance of the air column bags.
2. Wide variety of bag patterns such as Q bag, U bag, Cap, Pad, Roll, etc, can meet every cushion packing requirement.
3. The bag utilizes one-way air valve, which enables all the columns of the bag to be inflated sinmultaneously, and the air will be locked inside the columns.
4. If one column of the bag is broken or torn, the other columns will remain intact, as each column is independent.

Cushion packaging is made of Low Density Polyethylene, and now it has become a commonly used eco-friendly transparent flexible packaging materials. It has various kinds of products, like double filling bag, single-deck air filling bag, column bag and so on. It can be used to wrap or ship different kinds of products.

Features

1. Can be put stuffs inside, it's more convenient and safer to filling space and slow down the impact and shock of the contents inside between goods and packaging boxes.
2. Humanized automatic shape up function.
3. Light weight, good transparency, strong flexibility.
4. Sound insulation, no smell, no poison.
5. Humidity resistance and corrosion resistance.
6. Sturdy and durable, good air tightness.
7. Good vibration absorbance, good resistance to compression, good electrical insulation.
8. Can be repeated use, can't be inserted tubular strip to put off gas inside.

Specification

MOtor :ABB  Or Siemense
Inverter :Panasonic or Delta
Temperature Controller : Japan Omron
Thermal Couple : Zhejiang
Heater : Jiangsu
Cutting Blade : Maanshan
Switch : Schneider
Pneumatic : Jingwei or festo
