Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button

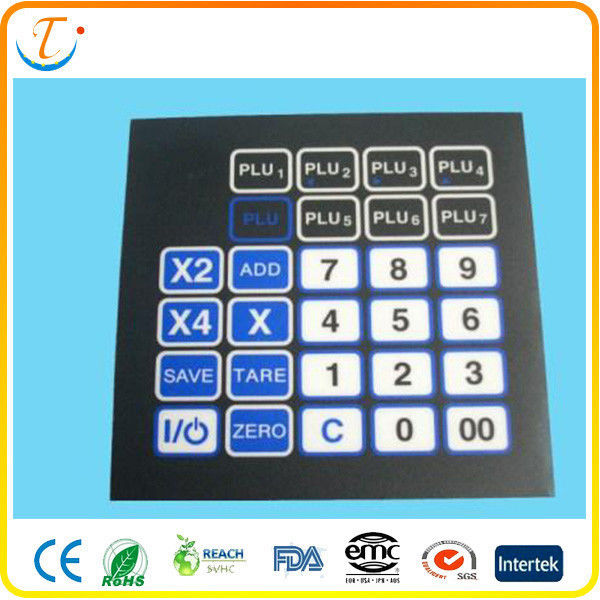

Large Image : Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button

Product Details:

Place of Origin:	Dongguan China
Brand Name:	TianTai
Certification:	ISO9001:2008, SGS,Rohs
Model Number:	TT-MS-059

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	USD 0.2~12
Packaging Details:	Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or As per customer request
Delivery Time:	Around 14-18 business days after payment
Payment Terms:	T/T, L/C, PayPal, Western Union, Cash
Supply Ability:	500000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Type:	Membrane Switch	Color:	Pantone And RAL
Certification:	ISO,RosH,SGS,REACH	Material:	Autotype PET , PC
Size:	Custom Design	Connector:	Female/male/ZIF
Sample Time:	3-6 Days	Delivery Time:	10-20 Days
Highlight:	Membrane Switch keypad

Adhesive PET LED Membrane Switch Keyboard With Embossed Metal Dome Push Button

Description:

Membrane switch:

perfect exterior
Autotype PC or PET overlay
Finish: glossy or matt.
Rear Adhesive: 3M467 or 3M468
Matching color:Pantone and RALcolor matching system.
SMD welding or by hand welding as per request
metal dome or polydome, assemble with silicone keypad is also available.
Withstand millions of cycles
Standard Tolerances:+/- 0.10inch(+/-0.25mm)

Model	Custom membrane switch
Graphic Overlay	Autotype PET,PC
Embossed	Metal dome
Adhesive	3M467
Connector	Female connector
Pitch	1.0 mm
Tolerance	0.05 mm
Printing Colors	Pantone color
Window	Transparent glossy window

Applications:

Our membrane switches are widely used in :

Human Machine interface
Automatic Control Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controller
Access control systems.....

Specifications:

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at 40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

1 material : PET /PC
2 adhesive: 3M467 & 3M468 or as per request
3 High life time :>1million times
4 Pass:ISO9001:2008 RoHS.SGS
5 High quality

Competitive Advantage:

1. Strong capability in R&D.
2. Professional staff in Production, management, and engineering, experienced in the industry for over 17 years.
3. Professional Sales team can provide quick service.
4 Low cost and top quality
5. Long lifespan,Our membrane switch is more than 100million times.
6. In-house 100% functionally tested before delivery.
7. Customized specification is available .
8. ISO9001:2008 certified company with three factories, Can provide one station resolution for client.
