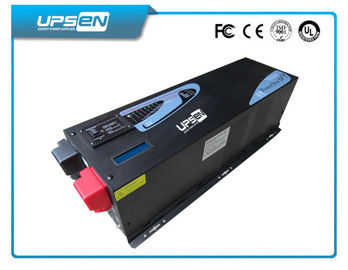

8KW / 10KW / 12KW DC AC Inverter Power Star W7 Inverters with Isolation Transformer
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Inveter Overview
1: Low Frequency Power Star W7 Inverter with pure sine wave output
2: Power Star W7 Inverter with high efficiency up to 93%
3: Inverter with capacity 1000W 2000W 3000W 4000W 5000W 6000W 8000W 10KW 12KW
4: Inverter with DC Voltage 12vdc 24vdc 48vdc 96vdc
5: Inverter with single phase 110vac 120vac or 220vac 230vac 240vac input and output
Key Features
Pure sine wave output (THD<3%), available for sensitive loads
High efficiency up to 95% under line mode, and 88% for Battery Mode
Fast and powerful charger with 35A and 70A
4-step progressive charging, 7 battery type selector
Accept generator’s energy output
Automatically transfer between battery and line modes
Microprocessor control guarantees high reliability
Bypass without battery connected
Remote control function
Protection against:Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector)
Blackouts
Application
UPSEN Power Srar Inverter can be used for various home appliances, office equipment, solar power system, and other equipments which use single phase power.
|
Power Star Series
|
|
Model No.
|
PS1000
|
PS2000
|
PS3000
|
PS4000
|
PS5000
|
PS6000
|
|
Nominal Power
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
AC Input
|
|
Waveform
|
Pure Sine Wave
|
|
Voltage
|
120VAC/230VAC
|
|
Acceptable Voltage
|
194-243VAC164-243VAC(wide mode)
|
|
Line Low Transfer
|
85V±4%/184(154 wide mode±4%)
|
|
Line Low Return
|
95V±4%/194(164 wide mode±4%)
|
|
Line high Transfer
|
135V±4%/253±4%
|
|
Line high Return
|
127V±4%/243±4%
|
|
Frequency
|
50Hz or 60Hz (Auto sensing)
|
|
Line Low Transfer
|
47Hz for 50Hz, 57Hz for 60Hz
|
|
Line high Transfer
|
55Hz for 50Hz, 65Hz for 60Hz
|
|
AC Output
|
|
Waveform
|
Pure Sine Wave(bypass mode sync to input)
|
|
Voltage
|
120/220/230/240VAC(bypass mode sync to input)
|
|
Voltage Regulation
|
±10%rms(bypass mode sync to input)
|
|
Frequency
|
50Hz±0.3Hz(bypass mode sync to input)
|
|
Peak Power
|
3 times of rating power
|
|
Short Circuit Protection
|
Yes,shutdown after 10ms
|
|
Power Factor
|
0.9-1.0
|
|
DC Input
|
|
Battery Voltage
|
12V/24V
|
12V/24V/48V
|
24V/48V
|
|
Minimum Start Voltage
|
10V for 12V,20V for 24V,40V for 48V
|
|
Low Battery Alarm
|
10.5V for 12V,21V for 24V,42V for 48V
|
|
Low Battery Transfer
|
10V for 12V,20V for 24V,40V for 48V
|
|
High Voltage Alarm
|
16V for 12V,32V for 24V,64V for 48V
|
|
Max Charging Current
|
35A/70A
|
|
Over Charge Voltage
|
15.7V for 12V,31.4V for 24V,62.8V for 48V
|
|
Transfer Efficiency
|
|
Line Mode
|
＞95%
|
|
Battery Mode
|
＞88%
|
|
power saver
|
Available when the load is less than 25 Watts
|
|
Indicators
|
|
7-LED Display
|
From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
|
|
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged
|
|
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded
|
|
shutdown (red lighting) ,LED7 Saving Mode (green lighting)
|
|
3-LED Display
|
Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
|
|
Switch selector
|
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off.
|
|
Audible Alarm
|
Sounding when the heatsink's tem is over 105℃ and shutdown after 30 seconds.
|
|
Protections
|
low battery,over charging,over temp,over load
|
|
Communications
|
RS-232/USB(custom-made)
|
|
Enviromental
|
|
Operating Environment
|
0-40℃,0-90%RH(non-condensing)
|
|
Audible Noise
|
＜60dB
|
|
Physical
|
|
|
|
|
|
|
|
Net Weight(KG)
|
18
|
20
|
22
|
35
|
38
|
40
|
|
Dimension L*W*H(mm)
|
442*218*179mm
|
598*218*179mm
|
* Specification is subject to change without prior notice.
Competitive Advantages:
1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
