600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

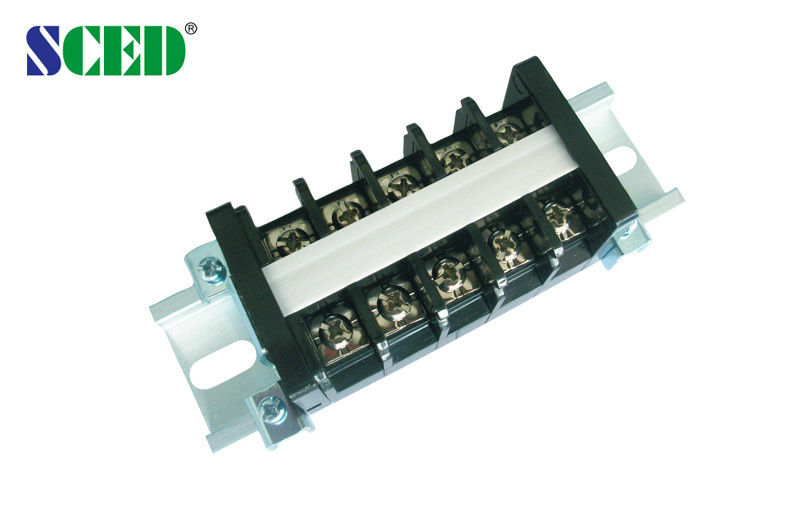

Large Image : 600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SCED
Certification:	UL, CE
Model Number:	TR30-02-FaM0

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T
Supply Ability:	1KK poles each monthly

Contact Now

Detailed Product Description

Type:	Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks	Pitch:	12.00mm
Number Of Contacts:	Any Poles Available	Wire Range:	10-20
Rated Voltage:	600V	Rated Current:	30A
Color:	Black	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Highlight:	barrier terminal block connector

Detailed product Description:

600V 30A High Current Terminal Connectors, Pitch 12.00mm Barrier Terminal Block

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:

600V 30A High Current Terminal Connectors , Pitch 12.00mm Barrier Terminal Block 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 35	600 / 30	600 / 5
Wire Range AWG	10-20	10-20	10-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 /30	800 / 30	1000 / 30
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	5.5
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	9-10
Screw Torque mm	M4 / 10.6-13
