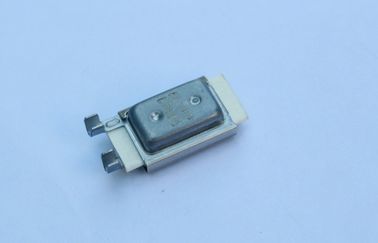

250V 10A Motor Thermal Overload Protector Switch Miniature Circuit Breaker 17AM-K

Quick Detail :

Thermal Overload Protector

Auto reset

Snap-action disc

The riveted terminals can be classified into two types: identical, opposite

Life cycle : ≥ 10,000

Description :

17AM-K Motor Thermal Overload Protector Switch With TUV,VDE,CUL,RoHS is an auto-reset device . When abnormal work happens , the current and the environment temperature will increase . As it reaches the operating temperature of protector , snap-action of bimetal will happen . Therefore , the contacts separate to make the circuit cut off, and the appliance go into security protection . While the appliance cool down , the temperature fall to reset temperature of the protector , and the reset of bimetal will happen , contacts close , the appliance power on again . It is an excess-current thermal protector with compact design , Quick and accurate action , we can rivet different types of leads according to customers' requirements .

Applications :

17AM-K Motor Thermal Overload Protector Switch prevents overflow and overheat. It’s a miniature , snap-acting , thermally operated device that has wide applications as below :

*  Battery packs
*  Shaded pole motors
*  Permanent split capacitor motors and pumps
*  Fluorescent lighting and HID ballasts
*  Transformers
*  Heating appliance
*  Portable power tools
*  Solenoids, PC boards and other application
*  Household appliance , etc.

Specifications:

1. Structure & Principle

2. Electrical Rating

3. General Temperature Specification:

Remark:

* Action temperature tolerance : ±5℃

* Reset temperature :  2/3 of action temperature , tolerance is ±15 Or customized

Certifications

Competitive Advantage:

1. More than 20years manufacturing experience ;

2. Owns unique R&D center and quality control center ;

3. Equipped with multiple sets of advanced machines which imported from Germany ;

4. We have got UL/CUL, TUV,VDE, RoHS, CQC certifications ;
