240℃ AC Boiler Bimetal Disc Snap Action Thermostats / Temperature Controller Switch

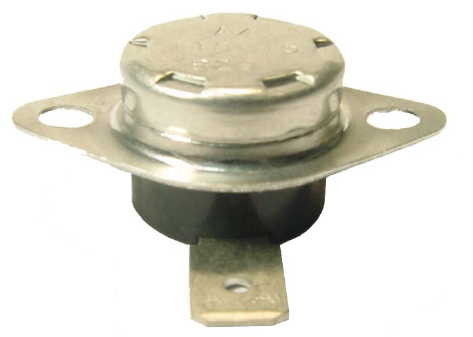

Large Image : 240℃ AC Boiler Bimetal Disc Snap Action Thermostats / Temperature Controller Switch

Product Details:

Place of Origin:	China
Brand Name:	DESHENG
Certification:	TUV CQC
Model Number:	KSD

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Packaging Details:	10,000pcs per carton
Delivery Time:	5-10 days on order date
Payment Terms:	T/T L/C D/P
Supply Ability:	300,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Bimetal Disc Thermostat	Rated Voltage And Current:	16A/125VAC,10A/250VAC 50HZ/60HZ
Applications:	Water Heater / Dish Washer / Boiler / Cooker / Drier	Advantage:	High Accuracy , Mini-size, Light , Long Lifespan
Cycles Life:	100, 000 Cycles	Certifications:	TUV And CCC
Highlight:	bimetal switch thermostat

240℃ AC Boiler Bimetal Disc Snap Action Thermostats / Temperature Controller Switch

Description:

KSD 240℃ and 16A 125V AC boiler emperature controller and Temperature Control Thermostat

These snap-action devices, with Quick Make/Quick Break action, automatically reset at preset temperature. An electrically isolated bimetal disc is used to either open or close the circuit current.

Applications:

Automatic drop coffee machine
Water heater, Water machines
Toaster furnace
Dish washer
Boiler
Cooker
Drier
Electric heating appliance
Washing machines
Office supplies

Specification


Rated voltage and current	16A/125VAC,10A/250VAC 50HZ/60HZ
Cycles life	100, 000 cycles
Terminal	6.350.8, 4.80.5.
Available Calibration Ranges	40℃ up to 180℃,tolerance ±5℃(insulation material PPS)
Available Calibration Ranges	40℃ up t o 220℃,tolerance ±5℃(insulation material 95 ceramics )
Standard Differential	up to 40° C below the min. switching temperature limit lowest limit 30° C. Other values on request
Pull strength	≥80N, no slip off
Dielectric Strength Terminal to Cap	2000 V eff, 50 HZ
Contact resistance	≤100 mW
Min. Rate of Temp. Rise	0,5° C /min
Ambient Temperature Limits	0° up to 200°
