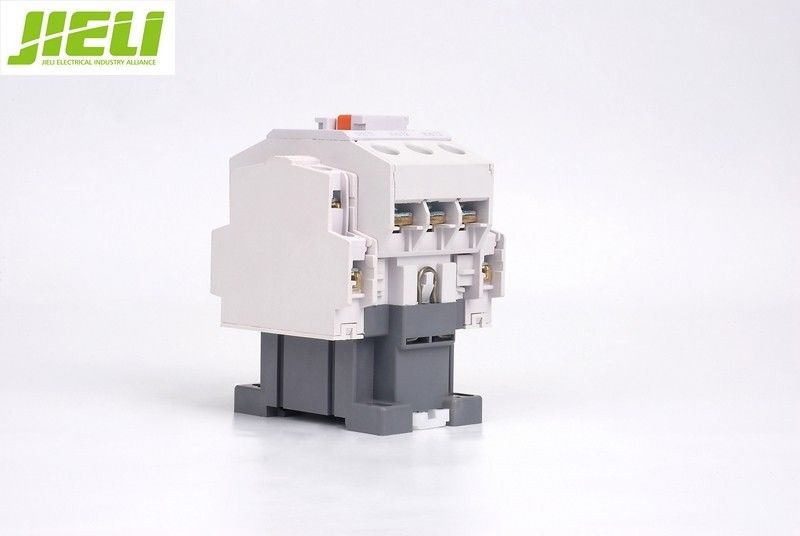

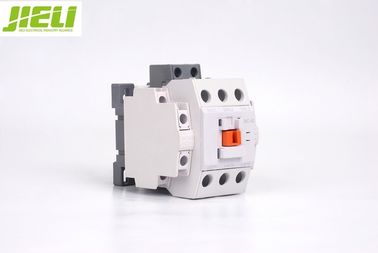

135A AC Magnetic Contactor For Lighting Telemecanique 380V - 440V
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number: JL-GMC-40
Electricity Type: AC magnetic contactor
Number of Pole:3
Phase: 3
Main Circuit Rating Voltage:
200-240V, 380-440V, 500-550V, 690V
Main Circuit Rating Current: up to 135A
Standard: IEC60947-4-1
Rated working current: up to 135A
Rated working voltage: up to 660V
Type: New / Old type
Description:

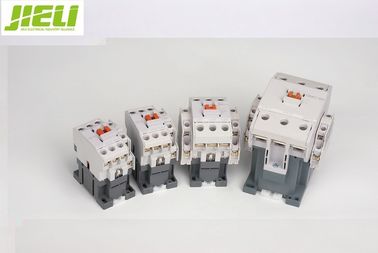

JL-GMC-40 series AC magnetic contactor is suitable for frequency 50Hz/60Hz, rated voltage up to 660VAC and rated current up to 135A.
JL-GMC-40 series AC magnetic contactor is used for making/breaking electric circuit at a long distance & for frequent starting/stopping & controlling AC motors.
JL-GMC-40 series AC magnetic contactor is used in combination with thermal relay to compose a magnetic motor starter.
JL-GMC-40 series AC magnetic contactor complies with IEC60947-4-1 standard.
Specifications:
|
Type
|
GMC-9
|
GMC-12
|
GMC-18
|
GMC-22
|
GMC-32
|
|
IEC-60947
|
AC 1 duty
|
20A
|
20A
|
25A
|
32A
|
50A
|
|
AC3 duty
|
200-240V
|
2.5KW11A
|
3.5KW13A
|
4.5KW18A
|
5.5KW22A
|
7.5KW32A
|
|
380-440V
|
4KW9A
|
5.5KW12A
|
7.5KW18A
|
11KW22A
|
15KW32A
|
|
500-550V
|
4KW7A
|
7.5KW12A
|
7.5KW13A
|
15KW22A
|
18.5KW28A
|
|
690V
|
4KW5A
|
7.5KW9A
|
9.5KW9A
|
15KW18A
|
18.5KW21A
|
|
UL
|
Continuous current (Ith)
|
20A
|
25A
|
30A
|
32A
|
45A
|
|
AC motor
|
Single phase
|
115V
|
0.5HP
|
0.5HP
|
1HP
|
2HP
|
2HP
|
|
230V
|
1HP
|
2HP
|
3HP
|
3HP
|
5HP
|
|
Three phase
|
200V
|
2HP
|
3HP
|
5HP
|
7HP
|
7.5HP
|
|
230V
|
3HP
|
3HP
|
5HP
|
7.5HP
|
10HP
|
|
460V
|
2HP
|
7.5HP
|
10HP
|
10HP
|
20HP
|
|
575V
|
5HP
|
10HP
|
15HP
|
15HP
|
20HP
|
|
Life time (unit:10,000 time)
|
Electrical
|
250
|
250
|
250
|
250
|
200
|
|
Mechanical
|
2500
|
2500
|
2500
|
2500
|
1500
|
|
Aux.contact
|
1NO1NC
|
1NO1NC
|
1NO1NC
|
1NO1NC
|
1NO1NC
|
2NO2N
|
|
|
|
Type
|
GMC-40
|
GMC-50
|
GMC-65
|
GMC-75
|
GMC-85
|
|
IEC-60947
|
AC 1 duty
|
60A
|
80A
|
100A
|
110A
|
135A
|
|
AC3 duty
|
200-240V
|
11KW40A
|
15KW55A
|
18.5KW65A
|
22KW75A
|
25KW85A
|
|
380-440V
|
18.5KW40A
|
22KW50A
|
30KW65A
|
37KW75A
|
45KW85A
|
|
500-550V
|
22KW32A
|
30KW43A
|
37KW60A
|
45KW64A
|
45KW75A
|
|
690V
|
22KW25A
|
30KW33A
|
37KW33A
|
45KW47A
|
45KW52A
|
|
UL
|
Continuous current (Ith)
|
50A
|
70A
|
80A
|
90A
|
100A
|
|
AC motor
|
Single phase
|
115V
|
3HP
|
3HP
|
5HP
|
5HP
|
7.5HP
|
|
230V
|
5HP
|
7.5HP
|
10HP
|
15HP
|
15HP
|
|
Three phase
|
200V
|
10HP
|
10HP
|
15HP
|
20HP
|
25HP
|
|
230V
|
10HP
|
15HP
|
20HP
|
25HP
|
30HP
|
|
460V
|
25HP
|
30HP
|
40HP
|
50HP
|
50HP
|
|
575V
|
25HP
|
30HP
|
40HP
|
50HP
|
50HP
|
|
Life time (unit:10,000 time)
|
Electrical
|
200
|
200
|
200
|
200
|
200
|
|
Mechanical
|
1500
|
1000
|
1000
|
1000
|
1000
|
|
Aux.contact
|
standard
|
2NO2NC
|
2NO2NC
|
2NO2NC
|
2NO2NC
|
2NO2NC
|
