100W Single Output Switching Power Meanwell LED driver with CB UL PFC

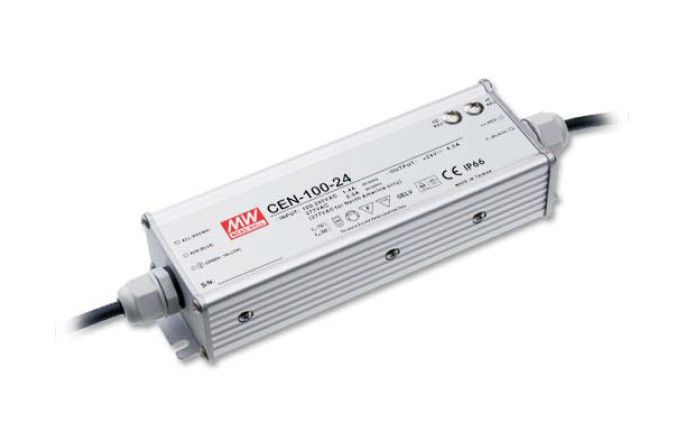

Large Image : 100W Single Output Switching Power Meanwell LED driver with CB UL PFC

Product Details:

Place of Origin:	Taiwan
Brand Name:	MEANWELL
Certification:	CE CB TUV UL cUL
Model Number:	CEN-100

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	0.6Kg; 24pcs/15.4Kg/1.11CUFT
Payment Terms:	L/C,, T/T, Western Union, D/P
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

DC Voltage:	48V	RATED CURRENT:	2A
FREQUENCY RANGE:	47~63HZ	WORKING TEMP:	-30 ~ +70°C(Refer To "Derating Curve")
POWER FACTOR:	PF>0.97/115VAC,	DIMENSION:	19562.540.5mm (LWH)
Highlight:	high power led driver

100W Single Output Switching Power Meanwell LED driver with CB UL PFC

Specification:

MODEL		CEN-100-48
OUTPUT	DC VOLTAGE	48V
	CONSTANT CURRENT OPERATION VOLTAGE Note.5	31.2 ~ 48V
	RATED CURRENT	2A
	CURRENT RANGE	0 ~ 2A
	RATED POWER	96W
	RIPPLE & NOISE (max.) Note.2	4.6Vp-p
	VOLTAGE ADJ. RANGE (SVR1)	43 ~ 53V
	CURRENT ADJ. RANGE(SVR2)	1.3 ~ 2A
	VOLTAGE TOLERANCE Note.3	±10%
	LINE REGULATION	±3.0%
	LOAD REGULATION	±5.0%
	SETUP. RISE TIME	3000ms / 230VAC 5000ms / 115VAC at full load
INPUT	VOLTAGE RANGE Note.4	90 ~ 295VAC 127 ~ 417VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	91%
	AC CURRENT (Typ.)	1.4A/115VAC 0.7A/230VAC 0.5A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 45A(twidth=85us measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 240VAC
PROTECTION	OVER CURRENT Note.4	95 ~ 110%
	OVER CURRENT Note.4	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	54 ~ 60V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	100°C±10°C(RTH1)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-30 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C (0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS Note.7	UL8750, CSA C22.2 No. 250.0-08(except for 48V, 54V), TUV EN61347-1, EN61347-2-13, IP66, J61347-1, J61347-2-13 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN61000-3-2 Class C (≥75% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547, light industry level (surge 4KV), criteria B
QTHERS	MTBF	519.5K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	19562.540.5mm (LWH)
	PACKING	0.6Kg; 24pcs/15.4Kg/1.11CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
	5. Constant current operation region is within 75% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
	6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
	7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
